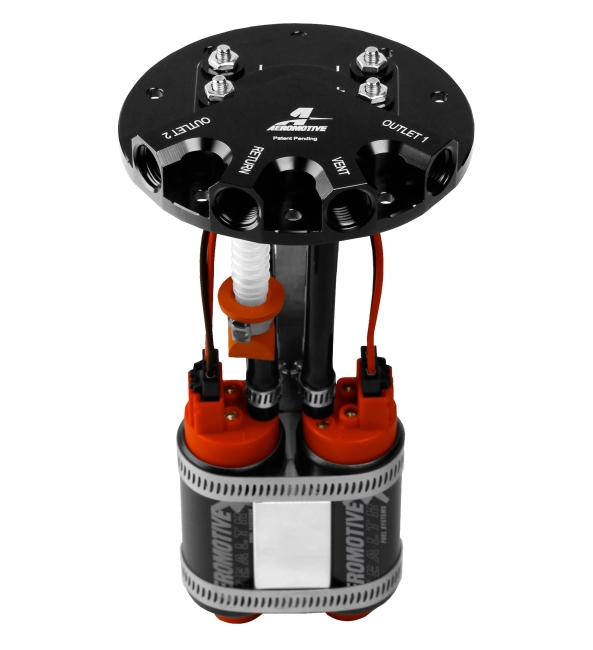

DUAL PHANTOM STEALTH FUEL SYSTEM. 6″-11″ DEPTH. DUAL 340

Description

Today’s aftermarket worldmakes it easy to pick up the phone and order 1000 HP for your street car. This has created several challenges forfuel delivery, ranging from hot fuel handling to pump noise. Aeromotive has acceptedthis challenge and hurdles past them with the latest addition to the Phantom line: the Dual Phantom.
The Dual Phantom comes loaded withtwo 340lph pumps, an additional set of electrical bulkheads, and a larger capacity foam and bladder. Remarkably, it does not take up any additional space. The dual pumps provide opportunityfor supporting big power (see power ratings below) while remaining OE quiet. Separate electrical bulkheads allow foran “on demand” fuel system, which reduces the amount of returned fuel and reduces the tank temperature, making vapor lock and cavitation a thing of the past. Also, this feature is a must when a redundant (back up) pump is needed in extreme conditions, such as off-road, desert, and endurance racing. The larger capacity foam and bladder combat fuel slosh while retaining enough fuel tofeed the dual pumps. And the best feature is all of this done from your stock tank withno welding or fabrication!
More about the Phantom Are you considering a switch to EFI orswapping in that late model motor? What has become the latest trend in hot rodding has been plagued by fuel delivery. The most common question is: “what do I dofor a tank”? Until now, it’s been one of three options: weld in a sump to your tank, go with a fuel cellor pay for a custom tank. Aeromotive’s Phantom FuelSystem gives you a fourth option: putting a high performance fuel pump inside virtually any fuel tank, including your factory tank.
Simply cut a hole in your tank and measure the depth. Cut your pump hanger bracket and baffle/basket foamto length. Insert the baffle, install the retainer ring and gasket, and bolt your pump andhanger down. That’s it. Nowyou have a fuel pump inside your factory tank capable of supporting big horsepower EFI or Carbureted. And it’s whisper quiet. No more weldingsumps or using up trunk space with fuel cells. No more hot fuel handling issues, like vapor-lock, and no more fuel slosh. The Phantom’s internal baffle / basket controls fuel slosh and keeps the fuel pump submerged in fuel, even at low fuel levels and in aggressive driving. Thebest part about this whole system: it’s completely universal. This system will fit virtually any tank from 6” deep to 11” deep,plastic, steel, aluminum, corrugated or smooth. One system that gives you everything you need to fuel your ride. Its serious performance you will never know is there!
Features:
(2) 340 lph Stealth Fuel Pumps
Supports up to -1400 HP EFI – Forced Induction- 1700 HP EFI – Naturally Aspirated – 1700 HP Carbureted- Forced Induction – 2000 HP Carbureted – Naturally Aspirated
Black anodized top hat
(4) ORB-06 Ports – 2x Supply,(1) Return, (1) Vent
Larger Capacity fuel resistant baffle / basket(Includes: Foam and Bladder)
(2) Universalhigh flow pre-pump filters
Modular designcan be cut to height to fit almost any fuel tank
EFI or Carbureted
Turbine pump mechanisms increase durability
In-tank useonly
