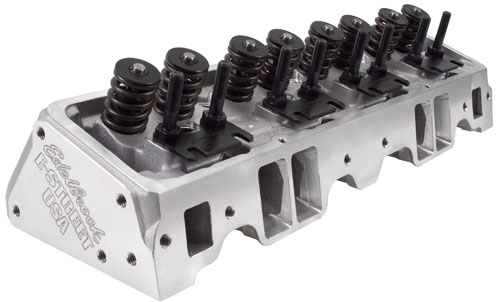

E-STREET HEAD CHEV SB 70CC ALLOY 300-400HP UPGRADE PAIR
E-STREET HEAD CHEV SB 70CC ALLOY 300-400HP UPGRADE PAIR
$2,795.60
Description
E-Street cylinder heads are an all new line of Edelbrock heads designed for entry-level street performance engines, ideal for operating in the idle to 5,500 rpm range. Manufactured in the USA, by Edelbrock, these heads feature A356 aluminium castings that are heat treated to T-6 spec for superior casting strength and quality. Their modern combustion chamber designs improve the combustion process and larger than stock intake and exhaust ports move more air through your engine. These features improve an engine’s efficiency, resulting in more horsepower and torque and improved mileage potential. Dyno tests showed a gain of 16 hp and 11 ft/lbs of torque over our overseas competitor.
Combustion chamber volume:
70cc
Intake runner volume:
185cc
Exhaust runner volume:
60cc
Intake valve diameter:
2.02″
Exhaust valve diameter:
1.60″
Valve stem diameter:
11/32″
Valve guides:
Manganese bronze
Deck thickness:
9/16″
Valve spring diameter:
1.25″
Valve spring maximum lift:
.550″
Rocker stud:
3/8″ with guide plate
Guide plate:
Hardened Steel
Pushrod diameter:
5/16″
Valve Angle:
23°
Exhaust port location:
Stock
Spark plug fitment:
14mm x 3/4″ reach, gasket seat
Made In:
USA
Additional information
| Weight | 29.3500 kg |
|---|---|
| Dimensions | 62.20 × 22.90 × 30.50 cm |
| Category list | |
| Brand | Edelbrock |
