EDELBROCK FORD 351C ALLOY HEADRPM 2VHEAD COMPLETE HYD ROLLER

Description

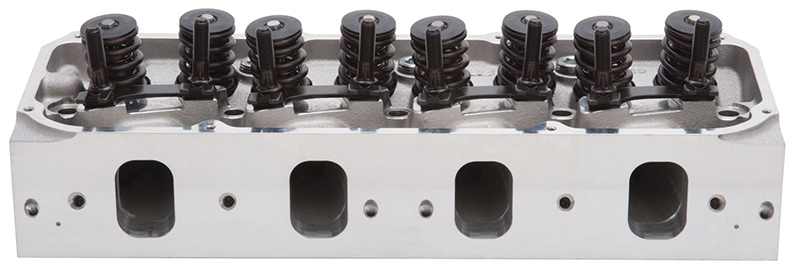

The Edelbrock #61625
Performer RPM cylinder heads
are designed for use with
351C, 351M & 400M Ford
engine applications. The
Edelbrock #61625 Performer RPM
heads are perfect for street
performance, daily drivers,
street rods and muscle cars
where seat-of-the-pants
performance is needed. These
cylinder heads deliver great
throttle response and power
from 1500 to 6500 rpm. They
also feature the highest
quality intake and exhaust
valves and valve springs. For
use on pre-pollution
controlled vehicles
only.

Features

• Match
  with Edelbrock head gasket
  sets.
• Bare heads will
  have valve guides and seats
  installed, but will require
  final sizing and a valve job
  to match the valves you will
  be using.
• Recommended
  spark plugs 14mm x 3/4″ reach
  with flat gasket seat
  (Champion
  RC12YC).
• Deck
  thickness: 5/8″
• Rocker stud diameter:
  7/16″
• Pushrod
  diameter: 5/16″ (width of slot
  in guide plate).
• Valve
  sizes are recommended, not
  maximum.
• EQUIPPED WITH
  SPRINGS FOR USE IN HYDRAULIC
  ROLLER CAMSHAFT
  APPLICATIONS
• Very
  streetable 190cc intake
  runners
• 2.05″ intake
  and 1.60″ exhaust
  valves
• “Compact
  charge” kidney shape
  combustion chamber
  design
• Intake and
  exhaust ports based on 2V
  design
• Optimized spark
  plug location provides
  improved header
  clearance
• Match with
  Edelbrock RPM Air-Gap manifold
  #7564

Head
Specifications:

• CNC
  Ported No
• Combustion
  Chamber Volume 60.0
  cu.in
• Deck Height
  9.206 in
• Deck
  Thickness 0.625
  in
• Exhaust Valve
  Diameter 1.600
  in
• Guide Plates
  Included Yes
• Intake
  Runner Volume 190.0
  cu.in
• Intake Valve
  Diameter 2.050
  in
• Material
  Aluminum
• Push Rod
  Diameter 0.312
  in
• Rocker Stud
  Diameter 0.437
  in
• Valve Angle 10
  deg
• Valve Spring
  Diameter 1.550
  in
• Valve Spring
  Maximum Lift 0.580
  in
• Valve Stem Diameter
  0.341 in
