EFI HI-RAM BASE ONLY LS1 LS2 LS6 CATHEDRAL PORT. BLACK
EFI HI-RAM BASE ONLY LS1 LS2 LS6 CATHEDRAL PORT. BLACK
$2,081.04
Description

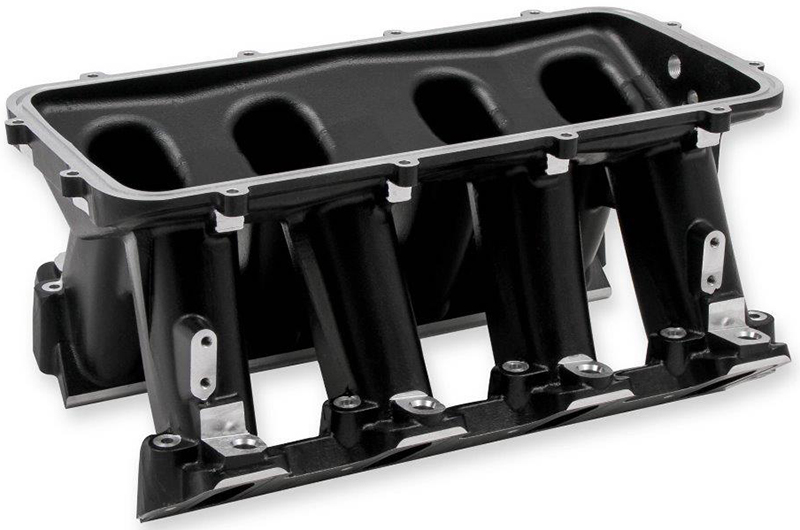

The Holley GM LS1/LS2/LS6 Modular Hi-Ram Intake Manifoldis introduced as a cost effective alternative to fabricated sheet-metal for high-performance applications where induction system height is not limited. Coupling this Hi-Ram intake with the high flowing LS1/LS2/LS6 style cylinder heads has outstandingpotential for N/A and forced induction applications at a budget-minded cost. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more!
The base is designed to be modular in configuration to accept a widerange of carbureted and EFI tops and to be attractive to builders and fabricators as the foundation for custom induction systems.
Runner lengthand the tapered cross-section designed to perform well for awide range of engine configurations
EFI fuel rails are machined for -8AN O-ring Fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsationsin the fuel system and come standard with EFI Hi-Ram kits.
Cast aluminum construction.
Intendedfor use on N/A or forced induction engines in the 6.0 to 7.0+ liter range, max powerat 7000-8000+RPM.
Features:
Port Size- 2.49″ Height x 1.21″ Wide
Mounting Flange Gasket Type – Standard LS3 Molded O-Ring
Plenum Top Gasket Type – 3/32″ Round O-ring Cord
Runner Length – 6.58″, As-Cast RunnerCross-Sectional Area – Tapered4.25 in² to 2.53 in²
Black
Additional information
| Weight | 13.5000 kg |
|---|---|
| Dimensions | 52.70 × 37.50 × 25.40 cm |
| Category list | |
| Brand | Holley |
