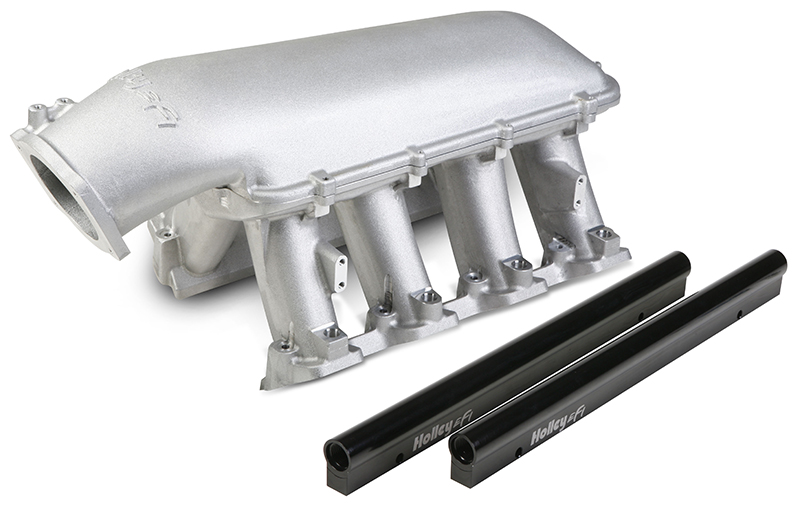

EFI HI-RAM LS7 MANIFOLD, 105MMINCLUDES BILLET FUEL RAILS
EFI HI-RAM LS7 MANIFOLD, 105MMINCLUDES BILLET FUEL RAILS
$2,172.10
Description
The Holley GM LS7 Modular Hi-Ram Intake Manifold is introduced as a cost effective alternative to fabricated sheet-metal for high-performance applications where induction system height is not limited. Coupling this Hi-Ram intake with the high flowing LS7 style cylinder heads has outstanding potential for N/A and forced induction applications at a budget-minded cost. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more!
The base is designed to be modular in configuration to accept a wide range of carbureted and EFI tops and to be attractive to builders and fabricators as the foundation for custom induction systems.
Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations
EFI fuel rails are machined for -8AN O-ring Fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits.
Cast aluminum construction.
Intended for use on N/A or forced induction engines in the 6.0 to 7.0+ liter range, max power at 7000-8000+RPM.
Features:
Base Plenum Top Mounting Flange Height – 8.42″ to the lifter valley cover flange on engine block.
Total Height with 92/105mm EFI Plenum Top – 12.32″ to the lifter valley cover flange on engine block.
Port Size – 2.49″ Height x 1.21″ Wide
Mounting Flange Gasket Type – Standard LS3 Molded O-Ring
Plenum Top Gasket Type – 3/32″ Round O-ring Cord
Throttle Body Flange Location, with 92/102mm EFI Plenum Top : Height – 8.42″ (from engine block lifter valley cover flange), Longitudinal Location – 3.84″ (forward from engine block front flange), Angle – 25 deg. (down from vertical)
Runner Length – 6.29″, As-Cast Runner Cross-Sectional Area – Tapered 4.67 in² to 2.84 in²
NOTE: All clearance item sales are final & are not returnable for credit or refund, descriptions are correct as per manufacture
Additional information
| Weight | 16.2600 kg |
|---|---|
| Dimensions | 67.60 × 40.60 × 37.10 cm |
| Category list | |
| Brand | Holley |
