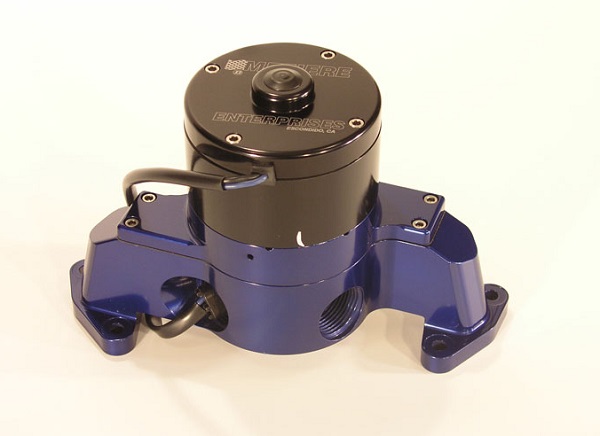

ELECTRIC WATER PUMP FORD W ’94-’95 & MOTORSPORT F/COVERS

Description

American made with quality
far superior to any other
performance aftermarket
company, we build our water
pumps with pride right here
in the USA. Don’t be mislead
by inflated flow numbers and
competitors’ outlandish
claims. We say what we mean
and mean what we say.

This water pump model
features:

• Fits small block Ford late
  model (1994 and later) with
  short water pump front cover
• Suitable for street
  or drag strip use – 2500 hour
  life expectancy
• Show
  quality blue anodised finish
• Standard motor
  provides 35 gallons per
  minute free flow rating
• All stainless steel
  hardware included
• Light weight. Complete
  standard small block Ford
  unit weighs only 5.6 pounds!
• Stainless steel
  large diameter main shaft
  with high performance ceramic
  seal
• Pump will clear
  cam belt drives and most
  blower drives
• 1″ NPT
  inlet adapters are available
  for #12AN, #16AN, #20AN,
  1-1/4″, 1-1/2″ or 1-3/4″ slip
  hose

Technical
Specifications:

• Belt Drives: Standard SBF
  design will clear Jesel belt
  drives and comparable belt
  drive systems. NOTE: If you
  are running a cam belt drive
  on your small block Ford, you
  will most likely need the
  WP173 pump. This pump will
  fit Yates, Danny B, Jesel,
  and Race Master belt drives.
• Distributor Belt
  Drives: Spacers will be
  necessary to clear belt drive
  distributor systems.
• Finishing The System: This
  pump is supplied complete
  with gaskets and hardware but
  without the inlet fitting and
  optional back plate. The
  fitting needs to be ordered
  according to the size of the
  lower radiator hose. A back
  plate will be required in all
  applications using a stock
  style timing cover.
• Amperage draw: Under normal
  use the pump will draw 6-7
  amps.
• Overall Height
  Dimension: The standard pump
  is 6.10″ long from the
  mounting surface to the tip
  of the pump.
• Pump
  Weight: This application
  weighs 5.6 lbs.
• 16
  volt systems: When purchasing
  a pump for a 16 volt system
  we recommend the 16 volt
  optional motor on our pump.
  The 12 volt pump will work
  for limited use applications.

Additional
Notes:
The standard 35
GPM pump is suitable for
normally aspirated engines up
to 650HP. Supercharged,
turbocharged and high
compression, high horsepower
applications should use the
55GPM High Flow pump only.
This model does not accept
heater or bypass hoses as a
standard. These may be added
at the factory for an
additional cost. Please call
for details.

The small
block Ford engine has gone
through several design
changes at the factory since
its inception. There are two
different 35 GPM pump models
that may be right for your
engine. .

Accessories
for Small Ford:
Water
Pump Spacers:
Thickness
.9″ WPS173
Relay Wiring
Kit upgrade WIK346
