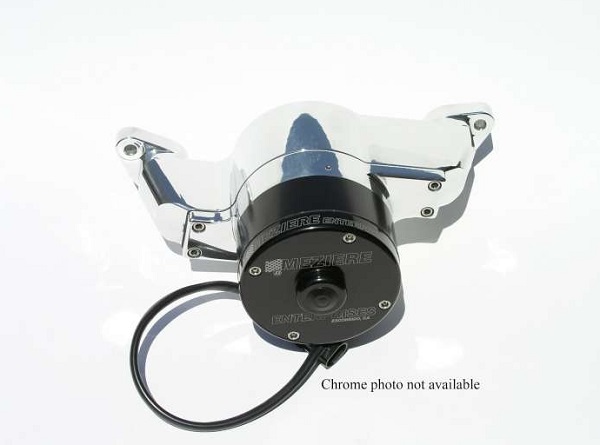

ELECTRIC WATER PUMP SBF – 351C35 GPM CHROME **SEE NOTES**

Description

American made with quality
far superior to any other
performance aftermarket
company, we build our water
pumps with pride right here
in the USA. Don’t be mislead
by inflated flow numbers and
competitors’ outlandish
claims. We say what we mean
and mean what we say.

This water pump model
features:

• Fits small block Ford
  Windsor, Cleveland and 5.0
  models before 1994
• Suitable for street or drag
  strip use – 2500 hour life
  expectancy
• Show
  quality chrome finish
• Standard motor provides 35
  gallons per minute free flow
  rating
• All stainless
  steel hardware included
• Light weight. Complete
  standard small block Ford
  unit weighs only 5-1/2
  pounds!
• Stainless
  steel large diameter main
  shaft with high performance
  ceramic seal
• Pump
  will clear cam belt drives
  and most blower drives
• 1″ NPT inlet adapters are
  available for #12AN, #16AN,
  #20AN, 1-1/4″, 1-1/2″ or
  1-3/4″ slip hose

Technical
Specifications:

• Belt Drives: Standard
  SBF design will clear Jesel
  belt drives and comparable
  belt drive systems.
• NOTE: If you are running a
  cam belt drive on your small
  block Ford, you will most
  likely need the WP173 pump.
  This pump will not fit Yates,
  Danny B, Jesel, or Race
  Master belt drives.
• Distributor Belt Drives:
  Spacers will be necessary to
  clear belt drive distributor
  systems.
• Finishing
  The System: This pump is
  supplied complete with
  gaskets and hardware but
  without the inlet fitting and
  optional back plate. The
  fitting needs to be ordered
  according to the size of the
  lower radiator hose. A back
  plate will be required in all
  applications using a stock
  style timing cover.
• Amperage draw: Under normal
  use the pump will draw 6-7
  amps.
• Overall Height
  Dimension: The standard pump
  is 6.10″ long from the
  mounting surface to the tip
  of the pump.
• Weight: This application
  weighs 5.5 lbs.
• 16
  volt systems: When purchasing
  a pump for a 16 volt system
  we recommend the 16 volt
  optional motor on our pump.
  The 12 volt pump will work
  for limited use applications.

Additional
Notes:
The standard 35
GPM pump is suitable for
normally aspirated engines up
to 650HP. Supercharged,
turbocharged and high
compression, high horsepower
applications should use the
55GPM High Flow pump only.
This model does not accept
heater or bypass hoses as a
standard. The small block
Ford engine has gone through
several design changes at the
factory since its inception.
There are two different 35
GPM pump models that may be
right for your engine.

Accessories for Small Ford:

Water Pump Spacers:

Thickness .9″ WPS111

Relay Wiring Kit
upgrade WIK346
