EXTREME FLOW EFI REGULATOR 30 – 120 PSI. -12 IN/OUT & RETURN
EXTREME FLOW EFI REGULATOR 30 – 120 PSI. -12 IN/OUT & RETURN
$631.53
Description

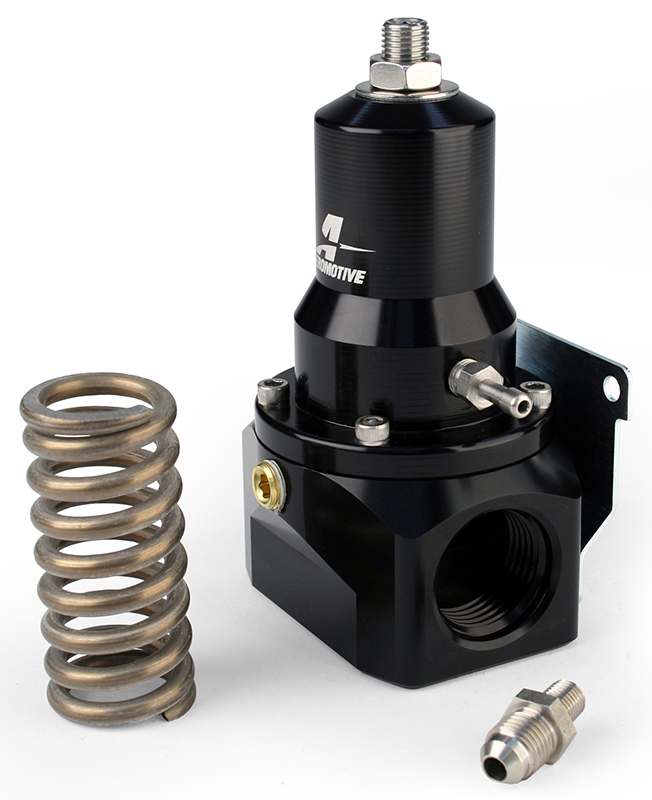

Our ALL-NEW Extreme-Flow EFI Regulator now comes with -12 ports! It’s designed for use with Belt or Hex Drive Fuel Pumps.
Compact, 2-Port Body with dual ORB-12 inlet/outlet ports and one ORB-12 return port.
0.500″ high-flowvalve/seat, able to handle 7-32 GPM Fuel Pumps.
Dual springs expand the range of operating pressure while maintaining a low profile regulator with reduced weight.
Standard spring (installed) supports 30-75 PSI base fuel pressure.
High Pressure spring (included) supports 75-120 PSI base fuel pressure.
Supports vacuum and boost reference on a 1:1 ratio with PSI.
Additional information
| Weight | 0.9800 kg |
|---|---|
| Dimensions | 14.00 × 7.00 × 14.00 cm |
| Category list | |
| Brand | Aeromotive |
