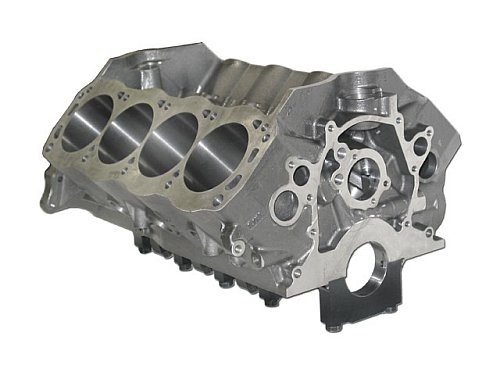

FORD 302 SPORTSMAN IRON BLOCK 4.125BORE 8.2DECK

Description

The Iron Eagle Sportsman
block for Ford small block
engines is designed to work
with stock components but is
much more than just a stock
replacement. Dart Iron Eagle
Sportsman blocks for small
block Ford engines are
powerful, competition blocks
that offer racers the
features they need while
remaining affordable.

Features:

• Siamesed
  cylinders: Standard
  4.000″ or 4.125″
  cylinders can be safely bored
  to 4.165″ diameter.
  Ductile iron sleeves and
  extra thick walls prevent
  cracking and produce
  excellent ring seal.
• Multiple deck heights allow
  for increased displacements
  of up to 468 cubic inches.
• Scalloped outer
  water jacket walls improve
  coolant flow around the
  cylinder barrels to prevent
  detonation, extend engine
  life and produce consistent
  cylinder temperatures.
• Ductile iron front and
  rear 2 bolt main caps with 4
  bolt interior main caps. Rear
  cap uses standard one piece
  seal.
• Two main
  bearing diameters 302
  (2.249″) or 351C
  (2.749″) allow choice of
  small or large journal
  camshaft.
• Stock
  components make Dart blocks a
  direct replacement for most
  production small blocks.
  Provisions for stock motor
  mounts, accessory drives,
  smog pumps, starter brackets,
  oil pans and pumps.
• Upgraded oiling system has a
  complete stock type system
  plus a low restriction
  priority main oiling system
  with front and rear external
  oil pump feeds.
• Dual
  crossovers allow oil flow to
  be metered with restrictors
  for roller lifter cams and/or
  rocker roller arms to reduce
  oil flow and windage.
• Reinforced head bolt bosses
  are blind tapped to prevent
  leaks and produce accurate
  torque readings. Extra thick
  decks prevent head gasket
  leaks.
• Standard
  camshaft and camshaft drive
  can be used. Lifter valley
  has bosses for production
  hydraulic roller lifters.
