FORD 351 SHP IRON BLOCK 4.00 BORE 9.2 DECK

Description

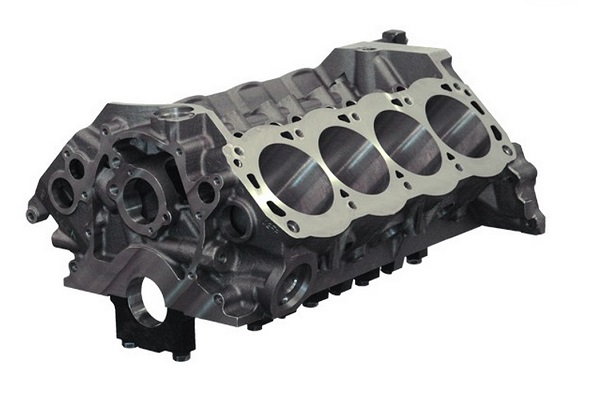

The SHP Ford block is
tailored to the most popular
performance and racing
applications, with an 8.200″
(302), 9.200″ (351c) or 9.500″
(351w) deck height and a
choice of 4.000″ or 4.125″
siamesed cylinder bores which
can safely be bored to 4.185″.
Steel main caps are splayed
4-bolt on the center three and
2-bolt on #1 and #5, and
utilize 1/2″ bolts. The valley
is machined to accept factory
roller lifter guides and
retainer
(spider).

• Priority
  main oiling system directs oil
  to main bearings first for
  more dependable
  lubrication.
• Available
  with an 8.200″ (302), 9.200″
  (351c) or 9.500″
  (351w).
• Provisions for
  OE stock roller lifters, dog
  bones &
  spider.
• Siamese bores
  4.000″ or 4.125″ (unfinished)
  with extra thick cylinder
  walls.
• Extra thick
  decks ensure reliable head
  gasket seal.
• Blind
  head bolt holes don’t go
  through to water
  jacket.
• Steel 4-bolt
  main caps on #2, 3 and 4 with
  splayed outer bolts. 2-bolt
  main caps on #1 and
  5.
• Can use most stock
  components and
  accessories.
• Scalloped
  water jackets increase coolant
  flow around cylinder barrels
  to prevent detonation, extend
  engine life and produce
  consistent cylinder
  temperatures.
• Parts
  kit sold separately (PN
  32000015)
