FORD 5.0L COYOTE 3.640″ B +5cc3.650 ST 5.933″ ROD 1.169″ C/H
FORD 5.0L COYOTE 3.640″ B +5cc3.650 ST 5.933″ ROD 1.169″ C/H
$2,161.91
Description

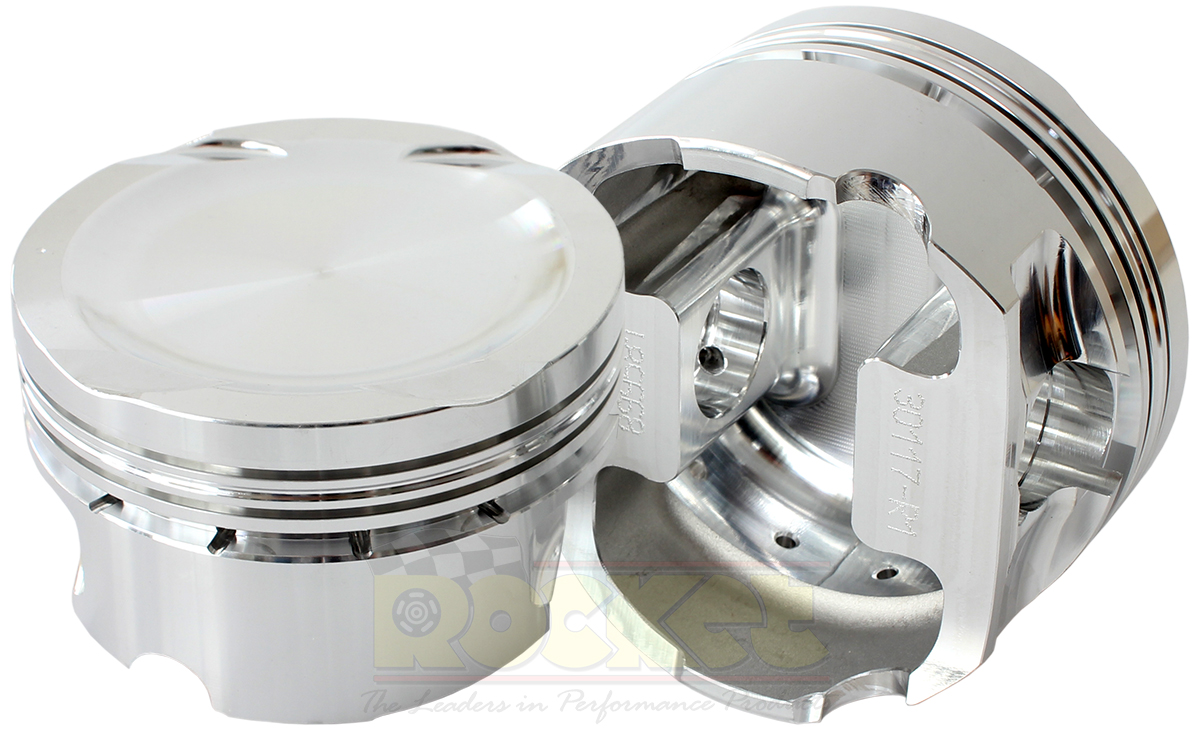

Piston Specifications:
Block: 5.0L Coyote
Bore: 3.640
Stroke: 3.650
Rod: 5.933
Comp Heigh: 1.169″
Weight: 384
Pin: .866 x 2.500″
CC’s: Dome Top 5.0
Comp Ratio With 57cc Head: 11.1
Ring Set: 09053640
Piston Features:
Designed to be used with 2011-17 5.0L Coyote cylinder heads
3D milling on piston crowns for ready to install finish
Offset pins for quiet operation
Top ring down dimension: .300″
Ratios figured for .040 head gasket @ 8.937 Deck
Premium 1.5mm x 1.5mm x 3.0mm ring package
Premium 8620 .155W wrist pins included
Oversized valve pockets – for larger than stock valve sizes
Valve pocket depth: 0.075″ intake and 0.075″ exhaust
Made from 2618 alloy
Additional information
| Weight | 5.7500 kg |
|---|---|
| Dimensions | 70.00 × 28.00 × 12.00 cm |
| Category list | |
| Brand | Diamond |
