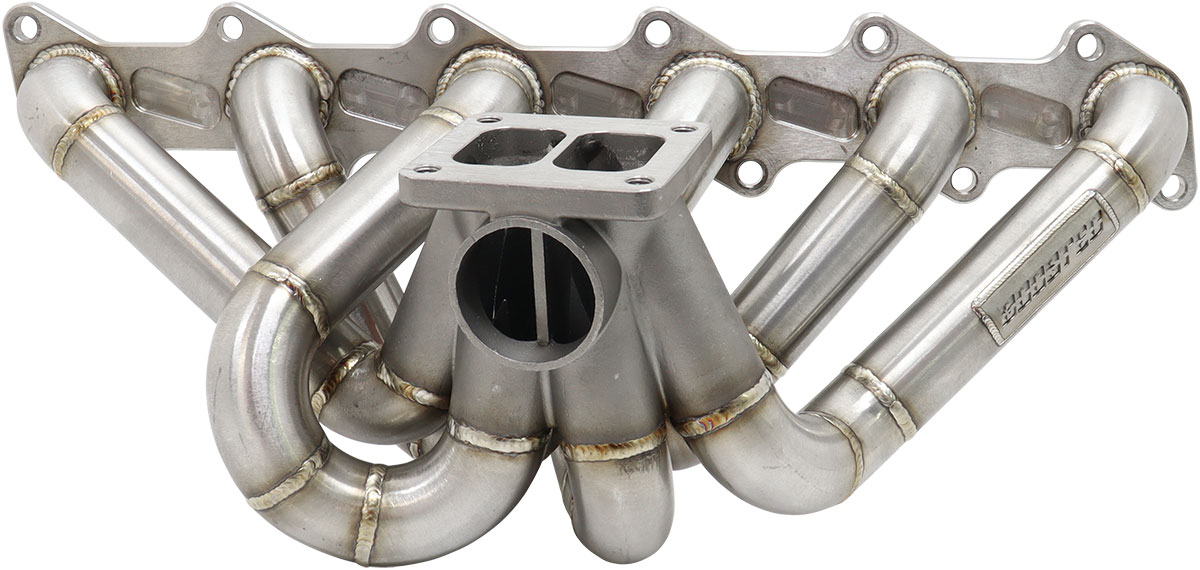

FORD BARRA S/S T4 TURBO MANIFOHIGH MOUNT GT40 50mm BA BF FG

Description

Model – Ford Falcon XR6 BA,BF,FG with Turbo Barra Engine turbo stainless steampipe manifold.
Turbo Collector Flange – T4 twin entry.
Mounting Location – High Mount.
Turbocharger Style – GT35/GT40/GT42 style (Boosted 6662 to Boosted 7975 in T4 flange).
Wastegate Flange – Single 50mm external wastegate.

Aeroflow Performance stainless steel steampipe turbo manifolds are a series of pipes that collectexiting exhaust gases which can be channelled into our merge collector which are perfectly matched to our Boosted range of turbochargers. Our merge collector design allows all pipes to enter at the exact same angle, and merge togetherat a point in the middle, pointing straight into the turbine. No pipes enter acrosseach other, so airflow is not disrupted, meaning a perfect balance between boost control and flow. With minimal back pressure where the manifold meets the turbo, you can be sure that you’re getting the best flow possible from our turbo manifold.

Aeroflowturbo manifolds are finished to the highest of standards, constructed from thick wall 3mm mandrel bent stainless steel steam pipe with CNC Machined header and turbo flanges. Each flange is milledafter welding to ensure precise surface finish. These manifolds are supplied with a short wastegate starter pipe designed to allow the fabricator to choose the size of the wastegate required, andthe position the wastegate sits in.

We do recommendto have this manifold either wrapped with exhaust wrap or ceramic coated to ensure protection for external accessories and reduce under bonnet temperatures.

TheAeroflow Performance turbo manifolds are available to suit many makes and models along with different flange and wastegate sizes available.
