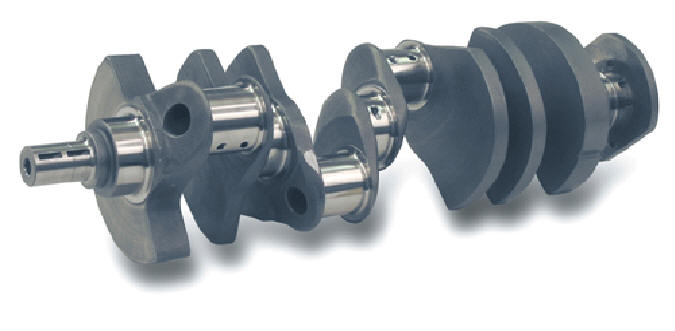

FORD CLEV 351C 3.850 6.125 2.100 4340 CRANKSHAFT *NOTES*

Description

Designed for street or
race engines with
substantially increased
horsepower

• 3.850″ Stroke.
• 6.125″
  Rod length.
• 2.100″
  Big end journal size – Use SB
  Chev LJ Rods.
• 2.750″
  Main journal size.
• Weight: 58 lbs
• Cleveland blocks must use
  timing set part # ROCS3110.
• Can internal
  balance, may require heavy
  metal.
• Designed and
  engineered by SCAT in Redondo
  Beach, CA
• Inspected
  & micro polished at SCAT
  in Redondo Beach, CA
• Straight shot & chamfered
  oil holes
• Nitride
  hardened for superior wear
  resistance
• Lightening holes in all rod
  throws
• Large radius
  on all journals.
• Precision ground, heat
  treated & shot peened

Scat forged standard
weight crankshafts are
designed for street or race
engines with substantially
increased horsepower. Scat
crankshafts are
precision-ground,
heat-treated, shot-peened,
inspected, and micro-polished
at Scat for superior
tolerance control. Scat
crankshafts are also
nitride-hardened for superior
wear resistance, have
straight-shot and chamfered
oil holes, and feature
lightening holes in all rod
throws. These crankshafts
also have a large radius on
all journals for improved
strength and wear resistance.
