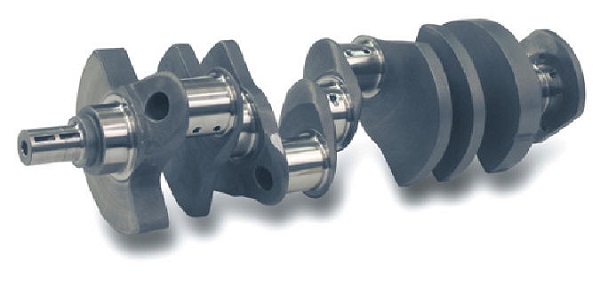

FORD SB 351W 3.850 6.000 2.1004340 FORGED CRANKSHAFT *NOTES*

Description

Designed for street or
race engines with
substantially increased
horsepower

• 3.850″ Stroke.
• 6.000″
  Rod length.
• 2.100″
  Big end journal size – Use SB
  Chev LJ Rods.
• 3.000″
  Main journal size.
• Weight: 56 lbs.
• Use
  28 oz balancer and flywheel
  to external balance.
• Designed and engineered by
  SCAT in Redondo Beach, CA
• Inspected &
  micro polished at SCAT in
  Redondo Beach, CA
• Straight shot & chamfered
  oil holes
• Nitride
  hardened for superior wear
  resistance
• Lightening holes in all rod
  throws
• Large radius
  on all journals.
• Precision ground, heat
  treated & shot peened

Scat forged standard
weight crankshafts are
designed for street or race
engines with substantially
increased horsepower. Scat
crankshafts are
precision-ground,
heat-treated, shot-peened,
inspected, and micro-polished
at Scat for superior
tolerance control. Scat
crankshafts are also
nitride-hardened for superior
wear resistance, have
straight-shot and chamfered
oil holes, and feature
lightening holes in all rod
throws. These crankshafts
also have a large radius on
all journals for improved
strength and wear resistance.
