FUEL BRIDGE FUEL LEVEL SENDER INTERFACE
FUEL BRIDGE FUEL LEVEL SENDER INTERFACE
$203.25
Description

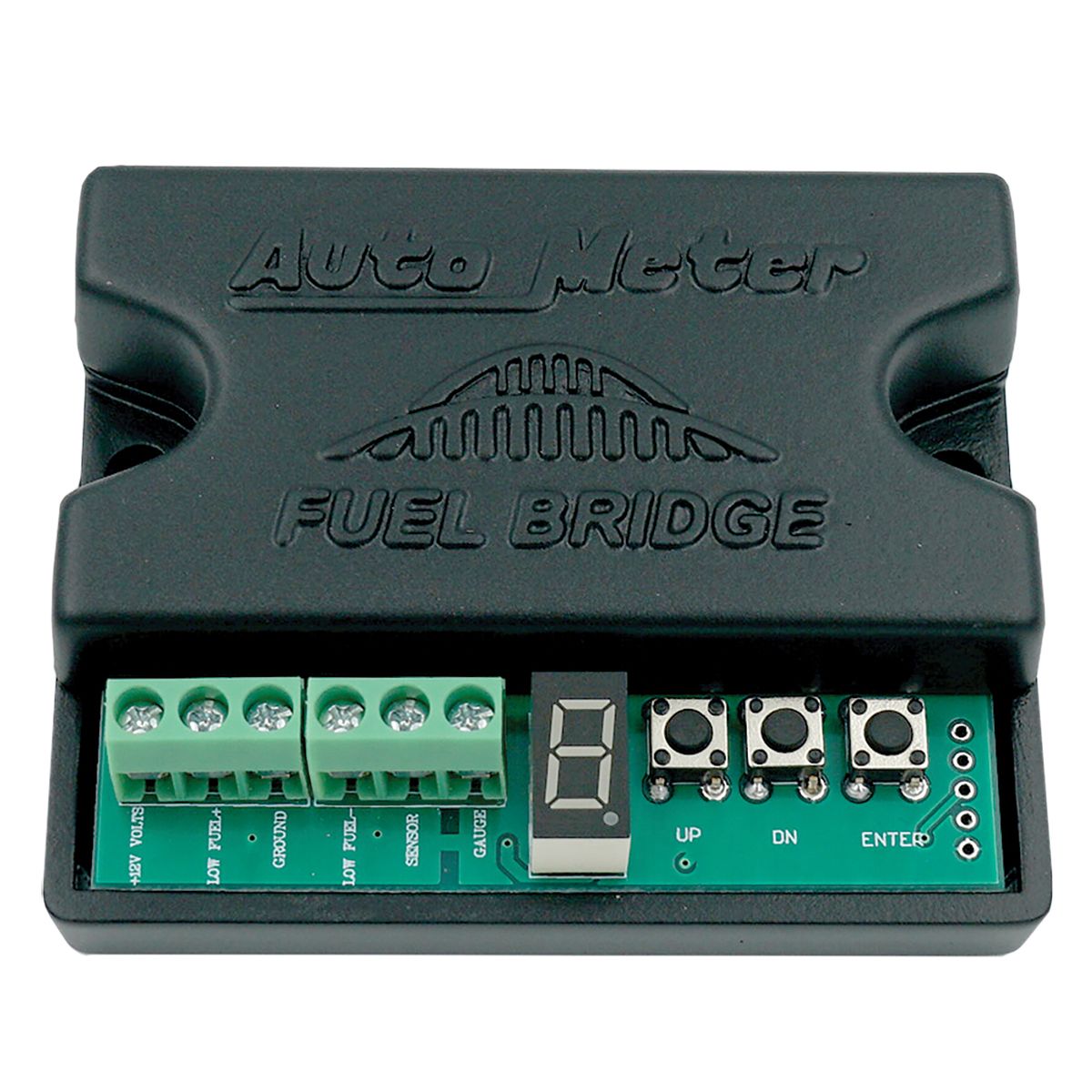

The Fuel Bridge wires in between your fuel level gauge and sending unit and allows you to use any AutoMeter fuel level gauge with any stock or aftermarket sending unit. The triple push button with LED display allows for easy set up. This unit is a compact size at 3 1/8″ wide x 2 1/2″ tall x 3/4″ thick. A low fuel level warning is available at 10% and off at 15%. It can turn on an LED or relay.
Feature Points
Allows you to use any AutoMeter fuel level gauge with any stock or aftermarket fuel sending unit
Three push buttons with LED display for easy set up
Low fuel level warning at 10% and off at 15% with ability to trigger LED or relay
8 pre-programmed resistance ranges for popular fuel level sending units
Configurable option with linear adjustments at 5 points (F, ¾, ½, ¼, & E) anywhere between 0-1000 or 1000-0 ohms
Compact size – 3“ x 2-½” x ¾”
e-programmed for the following: 240/33, 0/90, 0/30, 16/158, 73/10 (linear and non-linear), 10/180, 40/250
Additional information
| Weight | 0.1000 kg |
|---|---|
| Dimensions | 3.80 × 10.20 × 7.60 cm |
| Category list | |
| Brand | Auto Meter |
