FULL TRANSMISSION PARTS KIT SUIT POWERGLIDE

Description

REID Racing is now
introducing all of the “small
parts” for the GM Powerglide
and the REID Superglide. The
availability of these parts
will make it possible to build
a 100% new racing Powerglide
with no transmission core
needed. Imagine building a
Powerglide without the core
teardown, part cleaning and
machining time. All the parts
are built to meet or exceed
factory specifications with
proper heat treating,
precision machining and superb
fit and finish.

All the
pistons are machined from
billet aluminum for superior
strength. Pins and shafts are
ground round for a perfecft
fit. Where needed, parts are
hardened for long service
life.

Every part is
custom made. The snap rings
and e-clips are exactly the
same thickness as stock, the
springs are wound to fit like
factory, even the bolts are
specially made to match the GM
head design and thread
length.

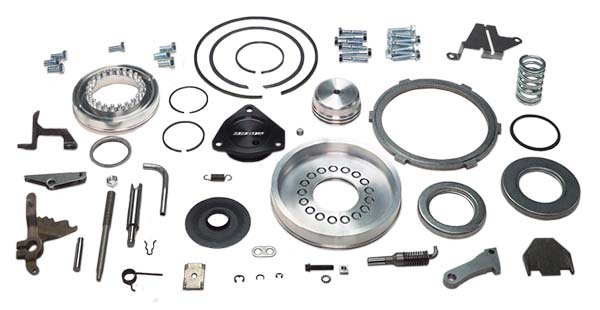

Full Kit
Includes:

• Billet dual ring servo apply
  piston
• Billet servo
  cover
• Servo piston
  rod
• Servo piston rod
  retainer
• Special servo
  return spring
• Special
  lip seal for
  servo
• Cast sealing
  ring for servo
• Servo
  cover bolts
• Servo
  apply tube
• Band apply
  strut
• Cast iron band
  anchor wedge
• Band
  adjustment screw
• Band
  adjustment lock
  nut
• Front pump
  attachment bolts
• Valve
  body attachment
  bolts
• Pawl bracket
  guide bolts
• Billet
  high gear clutch
  piston
• Extra thick
  high clutch spring
  retainer
• Rear clutch
  hub thrust
  washer
• Front clutch
  hub thrust washer
• High
  gear spring retainer snap
  ring
• High gear clutch
  flange snap
  ring
• Billet reverse
  gear clutch
  piston
• Extra thick
  reverse spring
  retainer
• Reverse gear
  pressure plate
• Reverse
  spring retainer snap
  ring
• Reverse clutch
  pack snap ring
• Rooster
  comb range
  selector
• Range
  selector detent
  lever
• Range selector
  spring
• Range selector
  spring retainer
• Range
  selector guide
  plate
• Range selector
  retaining clip
• Range
  selector
  screw/nut/washer
• Range
  selector lever retaining
  ring
• Parking
  pawl
• Parking pawl
  reaction bracket
• Park
  lock actuator
  assembly
• Parking pawl
  torsion spring
• Parking
  pawl pin
• Parking pawl
  pin retaining clip
