GM LS CARBY INTAKE MANIFOLD CATHEDRAL HI RISE EFI LS1 LS2
GM LS CARBY INTAKE MANIFOLD CATHEDRAL HI RISE EFI LS1 LS2
$871.29
Description

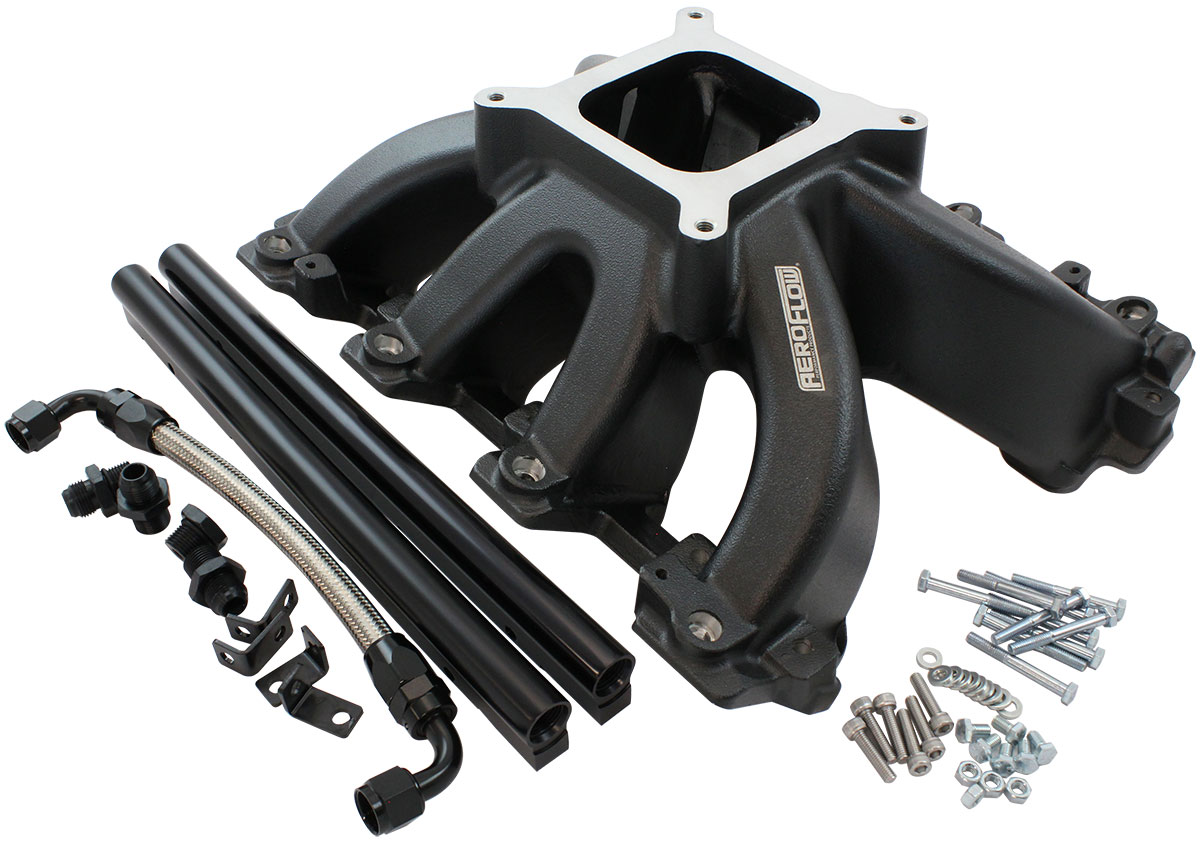

Convert your GM LS engine to allow a 4150 style throttlebody to sit on top of your engine for retro-fit applications with this Aeroflow Performance Hi Rise Race cast intake manifold. This single-plane intake manifold is designed to keep your air and fuel distributiongoing into the engine at a steady and even flow for maximum performance and efficiency. The carburettor-mounting pad is designed to accept aftermarket4150 square-bore throttle bodies or adapter plates for turbocharged applications. Specifically designed to suit GM LS Gen III and IV engines equipped with OE or aftermarket LS1/LS2 cathedral port cylinder heads.
• Fits GM LS1/LS2 Cathedral Port Engines.
• EFI Applications.
• This is designed for GM LS Engines with EFI only. Use AF6040-5005 for NON-EFI applications.
• This intake manifold does not work with factory OEM fuel rails and requires the use of Aeroflow Fuel Rail Kit included (AF6999-5000).
• Requires the use of 14mm short(33.60mm) fuel injectors (SoldSeparately).
• FitsGM LS1/LS2 Engines.
• Single Plane Configuration.
• High Rise Intake Manifold.
• RPM operating range – 2500 to 7000.
• Black Finish.
•- Intake manifold Flat style gasket (must use Fel Pro 1312-2 or 1312-3).
Additional information
| Weight | 11.0000 kg |
|---|---|
| Dimensions | 60.00 × 42.00 × 22.00 cm |
| Category list | |
| Brand | Aeroflow |
