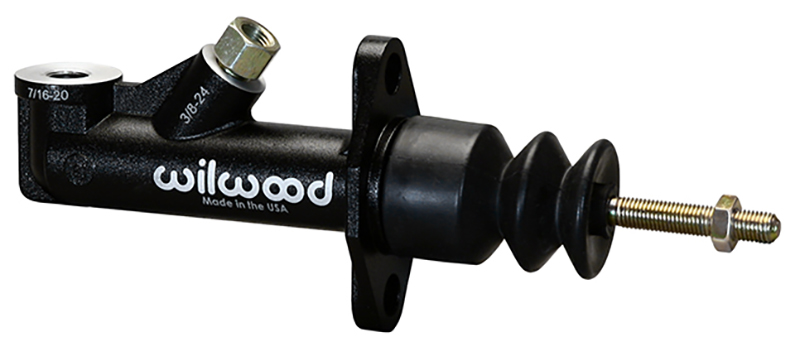

GS MASTER CYLINDER, .81″ BORE REMOTE RESERVOIR, BLACK
GS MASTER CYLINDER, .81″ BORE REMOTE RESERVOIR, BLACK
$178.30
Description
Wilwood’s new GS Compact Remote Master Cylinders are anall new rebuildable design featuring a high pressure die cast aluminium body with a protective e-coat finish. Remote cylinders feature a standard 7/16-20 threaded inlet.
Newly tooledhigh pressure die-cast aluminum bodies with protective e-coat finish
Newly designed internal piston and return spring assembly assures a quick and positive release with extended service life
Fully rebuildabledesign
All twist-on caps used on the integral reservoir models include positive seal bellows gaskets
Remote reservoir models use 7/16-20 male union inlet fittings withaluminum sealing washers
High displacement capacity with full 1.25″ stroke in all models
Use for brake or clutch
Direct mounting to Wilwood and all similar brand pedals using 2.25″ bolt hole center mounting flanges
Optional remote fill kits with choice of 4oz or 10oz capacity include the reservoir, filter,mounting bracket, rubber hose,clamps and fittings
Additional information
| Weight | 0.4800 kg |
|---|---|
| Dimensions | 25.20 × 6.50 × 15.00 cm |
| Category list | |
| Brand | Wilwood |
