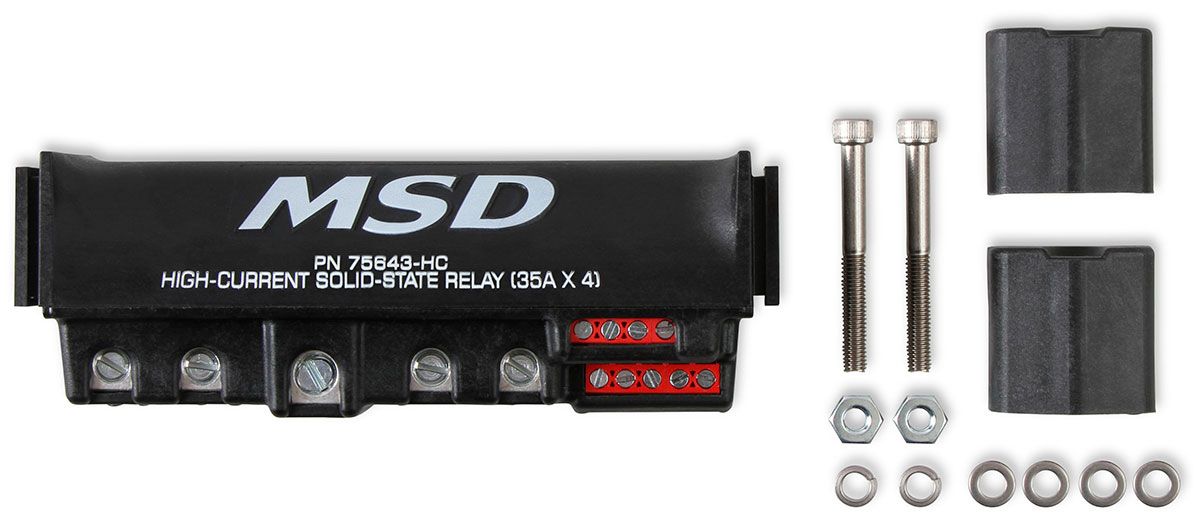

HIGH CURRENT SOLID STATE RELAY4 X 35 AMP CHANNELS, BLACK

Description

Clean up your wiring with an MSD Solid-State High Current Relay Block. This high current module takes the place of 4 standard relays andeliminates unsightly wiring. Four independent channels can be activated using either power or ground. Each channelis capable of handling up to 35 Amps of continuous current,providing up to 140 Amps of power. It also has the capability of Pulse Width Modulation (PWM). With a PWM input, you can control the output at a rate of 15 hertz and a duty cycle of 50-90%. Controls electric fans, water pumps, nitrous solenoids, auxiliary lighting and any other electrical accessories that would normally require a relay.
LED status indicators ensure proper wiring and operation of each channel. Should a problem arise, the relay block has built-in automatic over-temp, short circuit, and overload protection, as well as a channel reset. The solid-state high current relaycan easily be mounted using the supplied hardware and mounting tabs that can be rotated 90° to accommodatevarious mounting locations. It’s compact and clean design will make your wiring project a breeze.
Features:
Operates from 7-Volts to 20-Volt supply
4 Independent Channels, 35 Amps each continuous or 100 Amps for 8 seconds
Combined totalcontinuous current rating of 140 amps
Channels can be run in parallel for devicesrequiring more than 35 Amp single-channel rating
Clean, easy install with minimum wiring
Over-temp, short circuit and overload protection
Diagnostic LED’s and status indicators
Multiple mounting options
Single wire activation by switching power or ground
Available inRed or Black
A PWM signal can be used in the Solid-State Relay Module with a maximum frequency of 150 hertz and a duty cycle range from 50% to 90%
