HOLLEY SBC EFI CRANK TRIGGER KIT. 36-1 TOOTH. 8″ DIAMETER

Description

Holley’s EFI Crank Trigger
Kit is engineered to provide
an accurate crank speed &
position signal to Holley EFI
systems in the most-demanding,
high horsepower, racing
applications. Crank position
is measured every 10 degrees
as opposed to every 45 degrees
for a standard 4-Magnet, MSD
“style” Crank trigger. It is
designed for use on early
model small block Chevy
applications using a standard
ATI or Fluidamper “style”
balancer up to 7-1/4″” in
diameter.

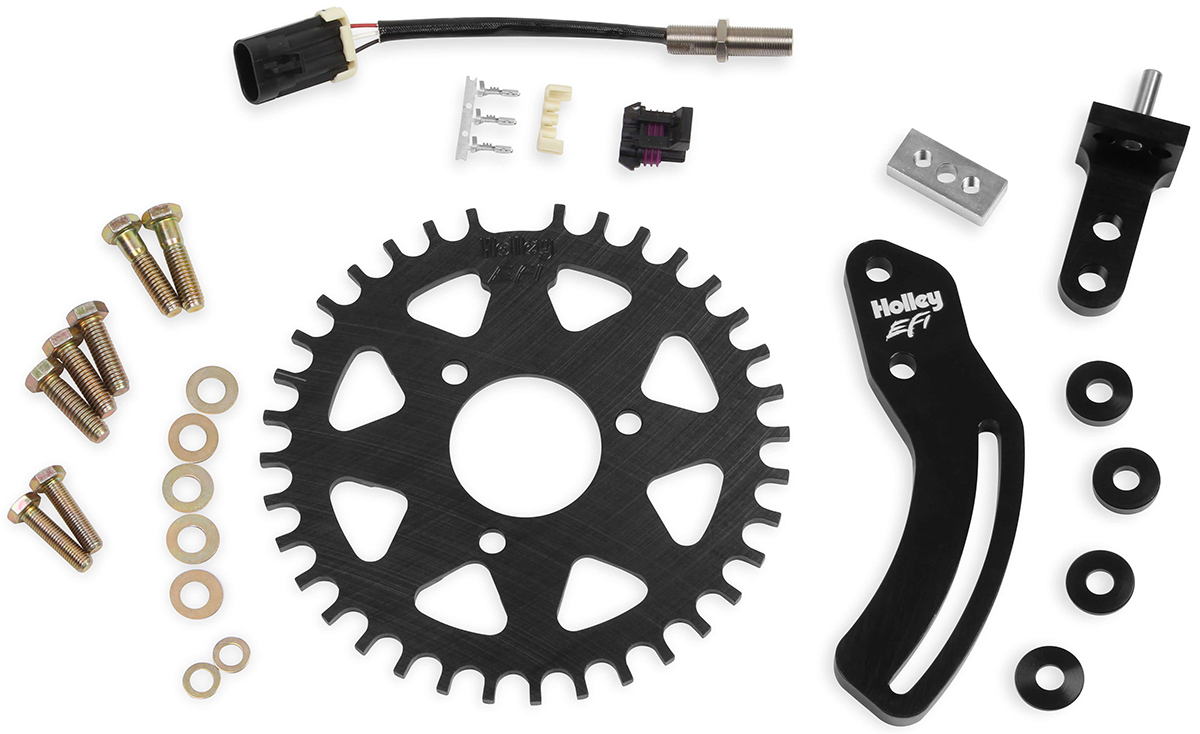

Features:

• 8″
  diameter, 1/4″ thick, billet
  steel, 36-1 tooth, crank wheel
  with Black Zinc Oxide finish
  for superior corrosion
  resistance & striking good
  looks.
• Crank wheel
  centers off of the balancer’s
  hub, eliminating the need for
  a centering ring
• All
  billet, 6061-T6 aluminum
  sensor mounting brackets with
  “bright-dipped” black anodized
  finish & Laser etched Holley
  EFI logo
• Custom
  3-wire, ferrous-target,
  Hall-effect sensor with
  M12X1mm threads for finer gap
  adjustment
• All Grade 8
  & Mil. Spec mounting
  hardware
