K&N TYPHOON KIT TOYOTA COROLLA1.8L 2009-2015.

Description

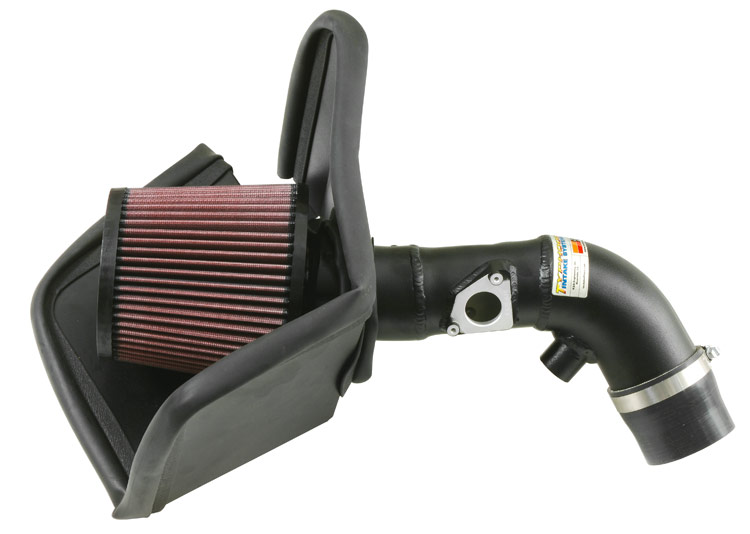

The K&N 69-8757TTK
Typhoon air intake system is a
free-flowing, mandrel-bent
aluminum tube air induction
system designed to fit some
Toyota Corolla models. The
restrictive factory air filter
and air intake housing are
replaced by the K&N
Typhoon air intake which is
designed to dramatically
reduce air flow restriction as
it smoothes and straightens
air flow. This allows your
engine to inhale a larger
amount of air than the factory
air intake. More air means
more usable power and
acceleration throughout the
engine’s RPM range. The
69-8757TTK air intake comes
with a black rubber topped
K&N high-flow air filter
and a heat shield that
installs into the previous air
box space. Air is directed
through the intake tube into
the engine’s throttle body
for a guaranteed power gain.
The intake tube has an
attractive textured black
finish that’s made to last and
it accommodates the factory
mass air sensor and crank case
vent hose. The oversized cone
shaped air filter can be used
for up to 100,000 miles before
servicing is needed depending
on driving conditions. This
air intake is relatively easy
to install usually in 90
minutes or less using existing
factory mounting points. The
tools needed are a
screwdriver, ratchet set and
some
wrenches.

• Guarantee
  d to increase
  horsepower
• Designed to
  improve throttle response and
  engine sound
• Low
  restriction aluminum
  tube
• Easy to install,
  usually in 90 minutes or
  less
• Replaces stock
  air intake
  system
• Washable and
  reusable lifetime air
  filter

Specifications
Estimated Horsepower Gain
6.37 HP @ 5323 RPM
Air
Filter Color Red
Air
Filter Height 5.5 in (140
mm)
Air Filter Large End
Diameter 6 in (152 mm)
Air Filter Material Cotton
Gauze
Air Filter Outlet
Shape Round
Clamp
Material Stainless Steel
Clamp Style Regular
Clamps Included 5
Couplers Included 2
Intake Pipe Color / Finish
Black
Intake Pipe
Material Aluminum
Product
Style 69 Series Typhoon
Kits
Replacement Filter
RU-4960XD

(Horsepower
gains based on similar vehicle
dynamometer test. Results will
vary.)

Application
2016
TOYOTA COROLLA 1.8L L4 F/I –
Exc. Eco
2015 TOYOTA
COROLLA 1.8L L4 F/I – Exc.
Eco
2014 TOYOTA COROLLA
1.8L L4 F/I – Exc. Eco
2013 TOYOTA COROLLA 1.8L L4
F/I – All
2012 TOYOTA
COROLLA 1.8L L4 F/I – All
2011 TOYOTA COROLLA 1.8L L4
F/I – All
2010 TOYOTA
COROLLA 1.8L L4 F/I – All
2009 TOYOTA COROLLA 1.8L L4
F/I – All
