LEVER TYPE PROPORTIONING VALVEM10 X 1.0 THREAD, BUBBLE FLARE
LEVER TYPE PROPORTIONING VALVEM10 X 1.0 THREAD, BUBBLE FLARE
$251.13
Description

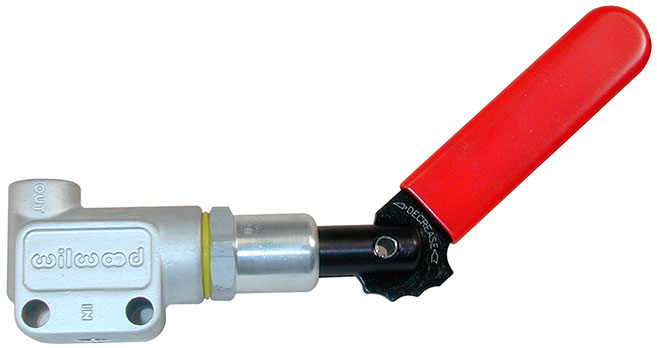

The new generation of adjustable proportioning valves combines the latest refinements to deliver precisepressure metering and strengthfrom a compact forged billet design. Pressure adjustments range from 150-1200 PSI and provide for a maximum decreaseof 57% in line pressure, the most of any available valve. This proportioning valve has six preset points actuated by moving a lever allowing racersto quickly adjust brake bias during a race. The lever “clicks” into the six positions for positive adjustment. Valves weigh only 6.1 ounces (lever), and have two .25″ side mounting holes spaced 1.00″ apart.Inlet / outlet ports are 10mm x 1 bubble flare.
Additional information
| Weight | 0.3200 kg |
|---|---|
| Dimensions | 19.40 × 2.90 × 14.00 cm |
| Category list | |
| Brand | Wilwood |
