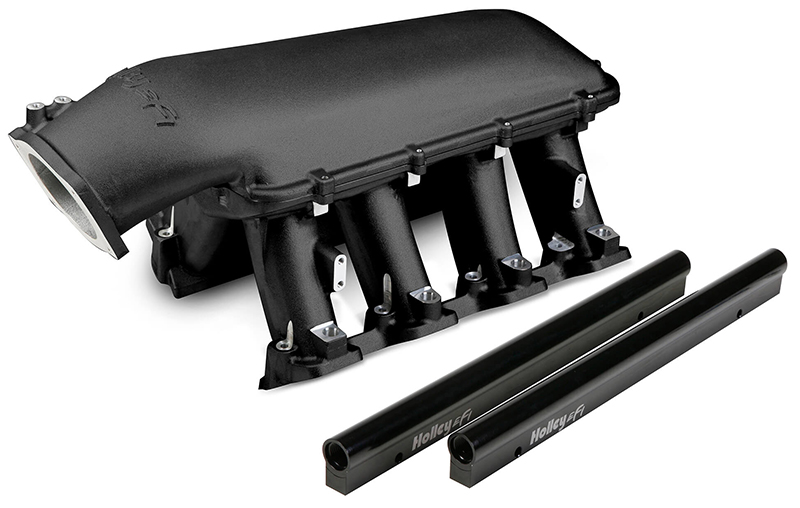

LS EFI HI-RAM LS3 w/102MM THROTTLE BODY x 1 BLACK

Description

The Holley GM LS3/L92 Modular Hi-Ram Intake Manifoldis introduced as a cost effective alternative to fabricated sheet-metal for high-performance applications where induction system height is not limited. Coupling this Hi-Ram intake with the high flowing LS3/L92 style cylinderheads has outstanding potential for N/A and forced induction applications at a budget-minded cost. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more!
The base is designed to be modular in configuration to accept a widerange of carbureted and EFI tops and to be attractive to builders and fabricators as the foundation for custom induction systems.
Runner lengthand the tapered cross-section designed to perform well for awide range of engine configurations
EFI fuel rails are machined for -8AN O-ring fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsationsin the fuel system and come standard with EFI Hi-Ram kits.
Cast aluminium construction.
Intendedfor use on N/A or forced induction engines in the 6.0 to 7.0+ liter range, max powerat 7000-8000+RPM.
FEATURES:
Base Plenum Top Mounting Flange Height – 8.42″ to the lifter valley cover flange on engine block.
Total Height with 92/102mm EFI Plenum Top -12.32″ to the lifter valley cover flange on engine block.
Port Size – 2.49″ Height x 1.21″ Wide
Mounting Flange Gasket Type – Standard LS3 Molded O-Ring
Plenum Top Gasket Type – 3/32″ Round O-ring Cord
Throttle Body Flange Location, with 92/102mm EFI Plenum Top : Height – 8.42″ (from engine block lifter valley cover flange), Longitudinal Location- 3.84″ (forward from engine block front flange), Angle – 25 deg. (down from vertical)
Runner Length – 6.50″, As-Cast RunnerCross-Sectional Area – Tapered 4.25 in² to 2.77 in²
