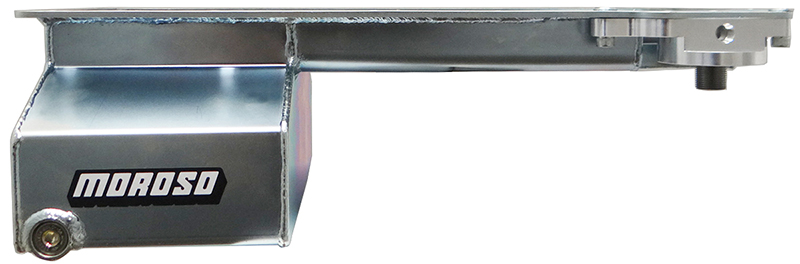

LS OIL PAN, FRONT SUMP 6″ DEEP WITH OIL FILTER MOUNT
LS OIL PAN, FRONT SUMP 6″ DEEP WITH OIL FILTER MOUNT
$1,031.01
Description
Chevrolet GM LS Series, Front Sump Swap Spin-on Oil Filter Adapter Wet Sump, 6.5 Quart Capacity, 6″ Deep, 14″ Wide, 6.75″ Long, Baffled Engine Application: GM LS Series Fits: LS Engine Conversions that require a Front Sump Oil Pan with a Spin-On Filter provision (Check Measurements)
Oil pan has a thick precision laser cut steel rail with a clear zinc finish
Clears 4.25″ stroke with most steel rods
Features a race proven diamond shape four trapdoor assembly and removable anti-slosh baffle that keeps oil contained in oil pump pickup area during Drifting, Road Racing and Drag Racing
Oil Pan Design moves oil away from the rotating assembly for oil control and horsepower saving
Accepts GM Part#12558253 Windage Tray with modification
Designed to be used with 2004-2006 Pontiac GTO O.E.M. Oil Pump Pick up, GM Part #12572654
Features a detachable, billet aluminium Spin-On oil filter adapter with a 1/4″ N.P.T. sensor portthat accepts a 13/16″ thread Moroso Part No. 22463 or O.E.M. Spin-On oil filter
Dipstick Fitting for required oil pan mounted dipstick
Magnetic Drain Plug
Additional information
| Weight | 8.1220 kg |
|---|---|
| Dimensions | 21.30 × 38.70 × 56.80 cm |
| Category list | |
| Brand | Moroso |
