LS1-2-6 INTAKE MANIFOLD 4BBL SINGLE PLANE CATHEDRAL PORT
LS1-2-6 INTAKE MANIFOLD 4BBL SINGLE PLANE CATHEDRAL PORT
$889.79
Description

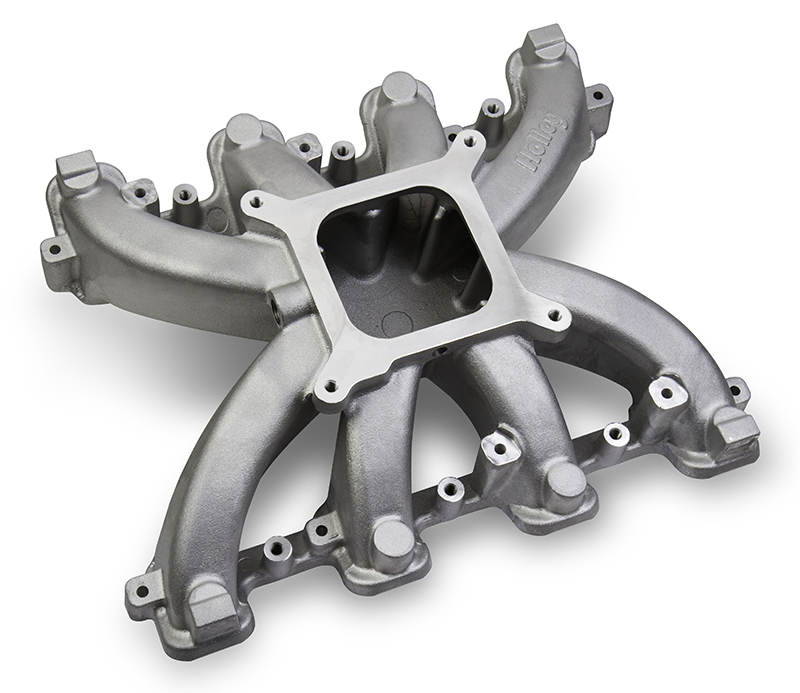

Carbureted Single plane intake manifold. Fits all GM LS Gen III or IV engines equipped with LS1/LS2/LS6 style cathedral port cylinder heads
Features:
2500-7000RPM power band
4150 Square bore carb mounting flange (accepts up to 1.75″ diameter throttle bores)
Optimized runner layout and constant cross sectional area – broad torque curve, best vehicle performance from 2500-7000 RPM
Minimum carb flange height – fits in vehicles with minimum hood modifications
Cast aluminum construction – great manifold for centrifugal blower, turbocharged or NOS power adder applications
Efficientcasting design – lightweight, consistent wall thicknesses, improved casting quality
Weight – 11.5 lbs.
Height (front) – 4.95″ to the lifter valley cover flange at the engine block front flange
Port size – 2.659″ height x .918″ wide
Includes Viton®intake to cylinder head O-ringgaskets – Viton® is a registered trademark of DuPontPerformance Elastomers
Additional information
| Weight | 10.0000 kg |
|---|---|
| Dimensions | 58.90 × 37.30 × 17.80 cm |
| Category list | |
| Brand | Holley |
