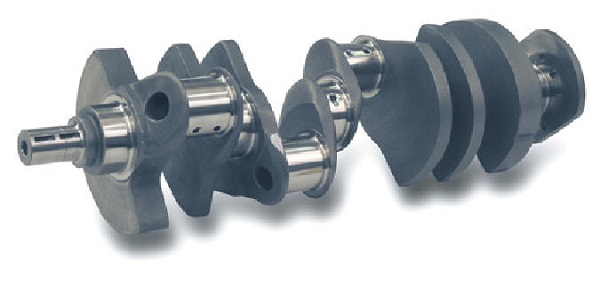

LS1 4.00 STROKE 4340 CRANK 24 TOOTH RELUCTOR (EARLY)
LS1 4.00 STROKE 4340 CRANK 24 TOOTH RELUCTOR (EARLY)
$2,379.74
Description
Designed for street or race engines with substantially increased horsepower.
4.000″ Stroke.
6.125″ Rod length. SB Chevy Rods.
2.100″ Big end journal size.
Flywheel bolts: 11mm x 1.5
24 Tooth Reluctor Wheel.
Rough Balanced to 1800 grams.
Weight: 48 lbs.
Gun drilled mains.
Straight shot & chamfered oil holes.
Dual linear post keyways for damper.
Nitride hardened for superior wear resistance.
Lightening holes in all rod throws.
Precision ground, heat treated & shot peened.
Large radius on all journals.
Designed and engineered by SCAT in Redondo Beach, CA.
Inspected & micro polished at SCAT in Redondo Beach, CA.
Scat forged standard weight crankshafts are designed for street or race engines with substantially increased horsepower. Scat crankshafts are precision-ground, heat-treated, shot-peened, inspected, and micro-polished at Scat for superior tolerance control. Scat crankshafts are also nitride-hardened for superior wear resistance, have straight-shot and chamfered oil holes, and feature lightening holes in all rod throws. These crankshafts also have a large radius on all journals for improved strength and wear resistance.
Additional information
| Weight | 24.5000 kg |
|---|---|
| Dimensions | 66.00 × 25.40 × 25.40 cm |
| Category list | |
| Brand | Scat |
