LS1 MONGOOSE 230CC STRIP COMPL65CC CHAMBER CNC PORT

Description

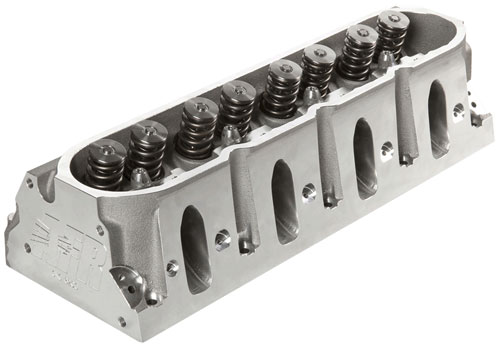

For the maximum high performing street/strip LS1/LS2/LS6 aluminum cylinder heads AFR’s all new 225cc are hands down the best choice. Specifically designed for 1997 to present Gen-3 Chevy Corvettes, Camaros, and trucks. AFR’s LSX cylinder head offers unmatched flow performance and features 2.080 intake and 1.600 exhaust valves with AFR’s iron ductile interlocking valve seats. Our 230cc cylinder head is ideal for normally aspirated 396C.I. to 427C.I. For a wild 346 ci the 230 is a good choice, however some low RPM loss of torque might occur. It is available with 62cc, 65cc, and 72cc combustion chambers. AFR’s LSX is a direct bolt on, no special parts required. Structural features like Air Flow Research’s trademark 3/4″ thick head deck, a must for blown and nitrous applications, reinforced rocker stud bosses and thick wall runners provide unparalled durability. An exclusive new modern combination chamber design with double quench pad area helps the LSX generate huge low and mid lift airflow numbers. If you need a snake charmer for that pesky neighborhood “Cobra Mustang” look no further!
Basic Package Components:
100% CNC Ported Combustion Chambers
100% CNC Ported Exhaust Ports
100% CNC Ported Intake Ports
3-angle Radiused Valve Job
Bead Lock Intake Valve, 2.080″ standard length
Bead Lock Exhaust Valve, 1.600″ staindard length
1.270″ OD Hydraulic Valve Spring with dampener, 155 lbs. on seat, .650″ maximum lift

7° 1.250 Titanium Retainers
7° Bead Lock Valve Keepers
Viton Valve Seals
Hardened Spring Cup
Intake Valve Seats
Exhaust Valve Seats
Bronze Valve Guides
