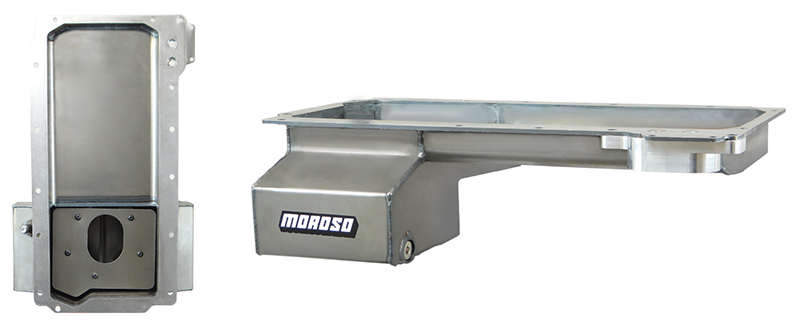

LS1 OIL PAN, FRONT SUMP 6″ DEEP, TRAP DOOR BAFFLED
LS1 OIL PAN, FRONT SUMP 6″ DEEP, TRAP DOOR BAFFLED
$1,045.21
Description
Fits:
LS Engine Conversions that require a Front Sump
Oil pan has a thick precision laser cut steel rail with a clear zinc finish
Clears 4.125″ stroke with most steel rods
Features a race proven diamond shape four trapdoor assembly and removable anti-slosh baffle that keeps oil contained in oil pump pickup area during Drifting, Road Racing and Drag Racing
Oil Pan Design moves oil away from the rotating assembly for oil control and horsepower saving
Accepts GM Part#12558253 Windage Tray with modification
Designed to be used with 2004-2006 Pontiac GTO O.E.M. Oil Pump Pick up, GM Part #12572654
Two straight–10AN fittings for remotefilter installation
Dipstick Fitting for required oil pan mounted dipstick
Magnetic Drain Plug
Additional information
| Weight | 10.0800 kg |
|---|---|
| Dimensions | 21.30 × 38.70 × 56.80 cm |
| Category list | |
| Brand | Moroso |
