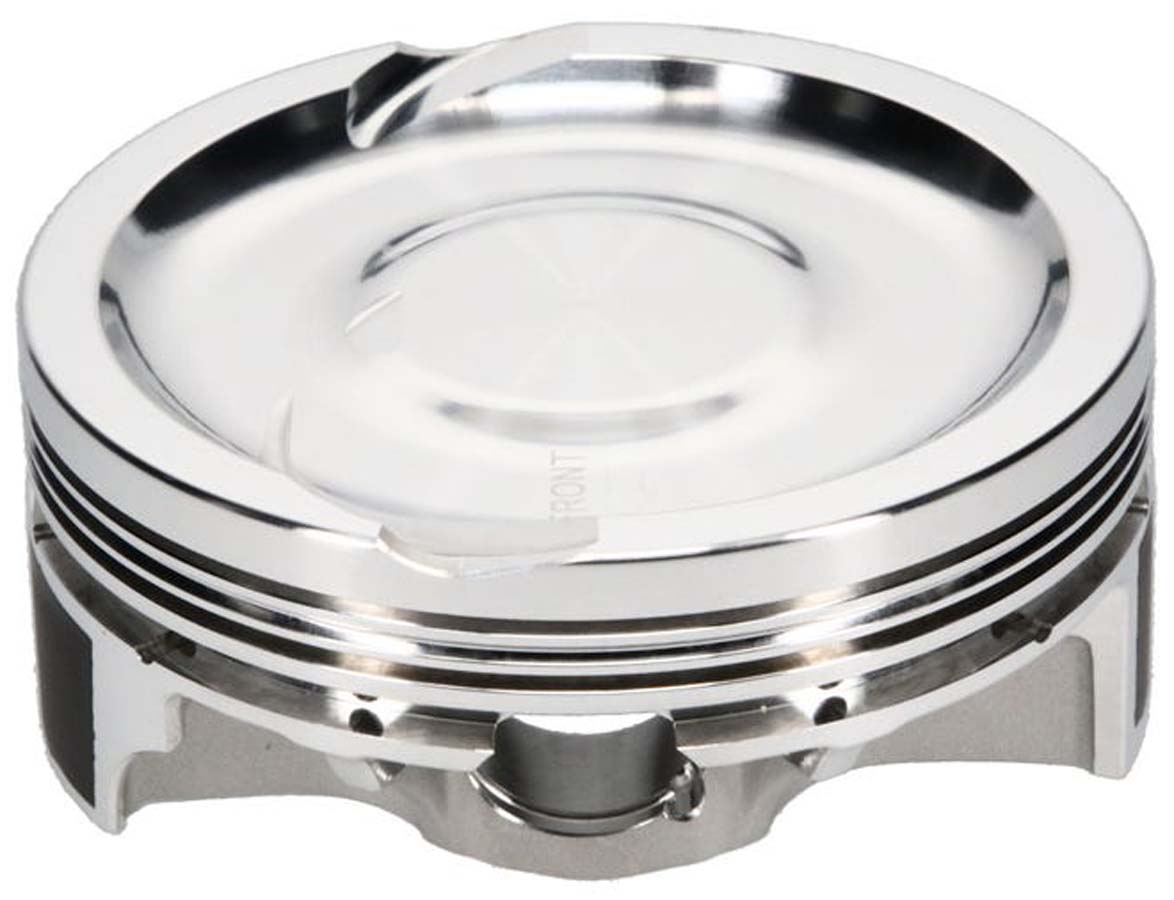

LS2 4.005″ PISTONS -7.6cc DISH4.000″ ST 6.125″ ROD 1.115″ CH
LS2 4.005″ PISTONS -7.6cc DISH4.000″ ST 6.125″ ROD 1.115″ CH
$1,952.61
Description
We have redesigned and expanded our GM LS1 series product lines! These new pistons utilized our dedicated Forged Side Relief (FSR) forging that was specifically designed for high output GM LS1 series engines. In addition we have found ways to reduce weight and maintain the durability needed for both street and racing use. Lightweight and extremely durable, these pistons are machined for 1.5mm, 1.5mm, 3.0mm rings. Wrist pin upgrade recommended above 800hp.
Includes:
Pin #927-2250-15-51C (106g)
Round Wire Locks # 927-073-MW
Features:
Accumulator Grooves
Double Pin Oilers
Offset Wrist Pin
Piston Specifications
Make: CHEVROLET
Engine: CHEVROLET LS GEN III/IV
Bore Diameter: 4.005
Compression Height: 1.315
Compression Ratio with 64cc chamber volume: 10.9
Compression Ratio with 68cc chamber volume: 10.5
Compression Ratio with 70cc chamber volume: 10.3
Piston Volume: -7.6
Cylinder Head: LS 12 DEG/15 DEG COMBO VR
Piston Pin Outside Diameter: 0.927
Piston Pin Length: 2.250
Piston Pin Material: 5115
Ringset Included: No
Top Compression Ring Thickness: 0.048
Second Compression Ring Thickness: 0.06
Oil Ring Thickness: 0.149
Piston Material: 2618
Forging Type: FSR
Piston Avg Weight: 401
Pin Wall Thickness: 0.170
Piston Type: Dish
Additional information
| Weight | 6.5100 kg |
|---|---|
| Dimensions | 66.00 × 15.20 × 30.50 cm |
| Category list | |
| Brand | Je Pistons |
