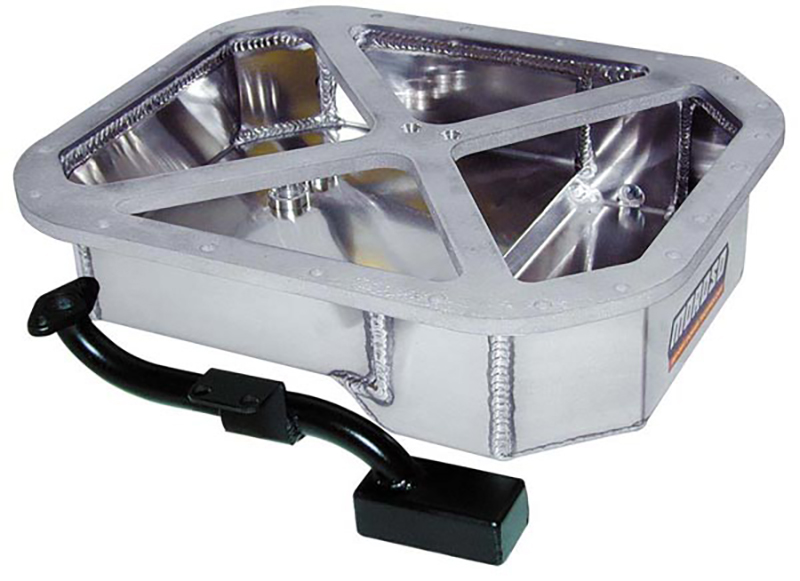

MAZDA 13B SUMP REAR SUMP 6 QT FABRICATED ALLOY ROTARY ENGINE
MAZDA 13B SUMP REAR SUMP 6 QT FABRICATED ALLOY ROTARY ENGINE
$1,332.54
Description
Fits: Tube chassis cars andother cars without a cross-member located under engine (check dimensions for clearance). Oil Pan, Aluminum,Rear Sump. Engine Application:13B Rotary (Non FD or Renesis)
Fully fabricated
3/8″-thic kbillet rail with integral X-brace greatly strengthens engine assembly to reduce twisting and axial deflection
Includes .080″-thick aluminum Baffle Plate to de-aerate and cool return oil (other baffles are only .060″ thick)
Includes an oilpump pickup specially designedfor this pan; access holes in pan facilitate mounting pickupto the front cover
ForDrag Race & Street
Includes magnetic drain plug with extracopper washer and pan mountingkit with hex-drive steel studsto eliminate stripping the engine block and serrated-faceflare nuts to withstand vibration
Accommodatesstock pan gasket and dipstick with existing oil level marks
Additional information
| Weight | 5.3090 kg |
|---|---|
| Dimensions | 21.30 × 38.70 × 56.80 cm |
| Category list | |
| Brand | Moroso |
