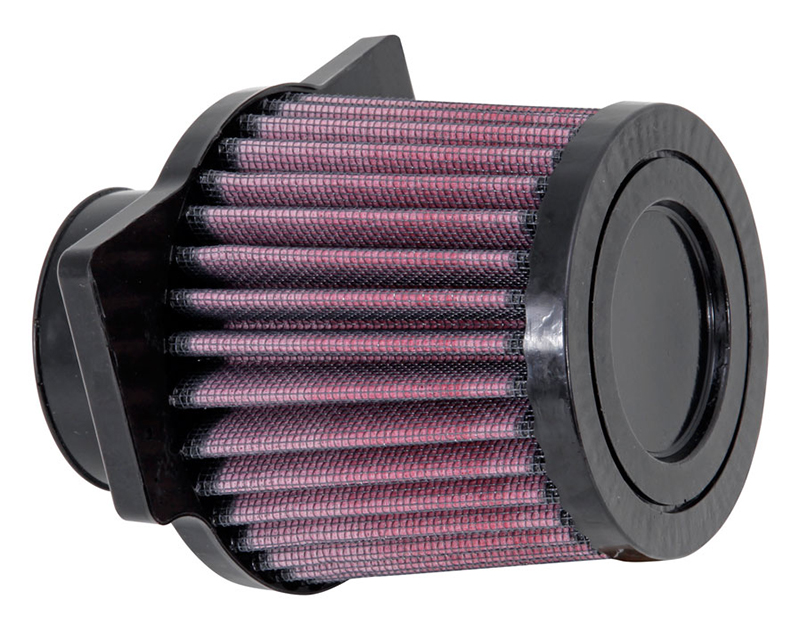

MC AIR FILTER HONDA CB500F CB500X, CBR500R, 2013 MODELS

Description

K&N’s high-flow air
filters are available as a
replacement for your stock
motorcycle air filter element.
They are custom engineered to
fit your specific application
and are designed to provide
low restriction and increased
performance, while providing
excellent engine protection
for your
motorcycle.

• Designed to provide increased
  horsepower and
  torque
• Pleated media
  provides a large filtration
  area offering long service
  intervals
• Multiple
  layers of woven cotton gauze
  media offers excellent
  filtration
• Application specific base seal
  and sealing bead
• Made
  in the USA for over 40
  years
• Washable &
  reusable, pre-oiled and ready
  to ride!

Specifications
Air Filter Shape Oval
Tapered
Base Outside
Length 5 in (127 mm)
Base
Outside Width 4 in (102 mm)
Filter Material Cotton
Gauze
Filter Re-Oiling
Amount 0.44 oz (13 ml)
Flange Inside Diameter 1.938
in (49 mm)
Flange Length
1.438 in (37 mm)
Flange
Type Centered
Flanges
1
Height 3.625 in (92
mm)
Top Material/Finish
None
Top Outside Length
3.5 in (89 mm)
Top
Outside Width 3.5 in (89
mm)

Cross
Reference
Honda
17211MGZD00

Appl
ication
2015
HONDA CBR500R ABS 471 – All

2015 HONDA CBR500R 471 –
All
2015 HONDA CB500X
ABS 471 – All
2015 HONDA
CB500X 471 – All
2015
HONDA CB500F ABS 471 – All
2015 HONDA CB500F 471 – All

2014 HONDA CBR500R ABS
471 – All
2014 HONDA
CBR500R 471 – All
2014
HONDA CB500X ABS 471 – All
2014 HONDA CB500X 471 – All

2014 HONDA CB500F ABS
471 – All
2014 HONDA
CB500F 471 – All
2013
HONDA CBR500R ABS 471 – All

2013 HONDA CBR500R 471 –
All
2013 HONDA CB500X
ABS 471 – All
2013 HONDA
CB500X 471 – All
2013
HONDA CB500F ABS 471 – All
2013 HONDA CB500F 471 –
All
