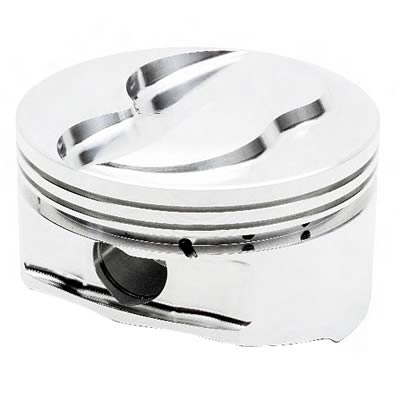

MITSU 4G63 PISTON -14cc, 86mm bore, 88mm STRK, 22mm PIN,

Description

This piston set is forged
from 2618 T6 high tensile
strength aluminium and
features a Smooth Finished
Crown for excellent flame
travel. Deburring or
preparation not required.
Will not fit 1999-2007
Mitsubishi Evolution engines.

Includes
:

• .866 x
  2.250 straight wall carbon
  steel wrist pin
• 1.2×1.5×3.0mm rings
• Pin fitting
• Wire
  locks

Specifications:

• Part #: J254006
• Bore: 86.0mm
• Oversize: 1.0mm
• Stroke: 88.0mm
• Rod
  Length: 150.0mm
• Compression Height: 34.72mm
• Chamber Volume:
  47.0cc
• Compression
  Ratio with .050″ Head Gasket:
  8.5:1
• Dome Volume:
  -14.0cc
• Gram Weight:
  319
• Footnote: Accepts
  Turbo and Nitrous, Limited
  Availability
• Skirt:
  Full Round Skirt
• Included Ring Set:
  JG2804-3386

With
over 60 years of experience,
JE Pistons is the leader in
high performance forged
pistons. We’ve built a
reputation that the
competition can only follow.
JE has a history of
manufacturing the highest
quality pistons and
components that professional
engine builders, race teams,
and high performance
enthusiasts trust and rely
on.

The top engine
builders in NASCAR, ALMS,
NHRA, AMA Supercross and
others choose JE Pistons over
any other brand. For over 60
years, JE’s position at the
forefront of performance
piston manufacturing has been
a result of continuous
research and development of
unique materials, piston
designs and technologies.
Utilising State-Of-The-Art
CNC machines for
manufacturing along with
purpose-designed forgings, JE
is able to maintain exacting
specifications on each and
every piston and hold
tolerances to millionths of
an inch. Also available from
JE is industry-leading
processes like Ultra Crown, a
Digital Three Dimensional
piston crown machining
process and Finite Element
alysis (FEA). FEA is a
computer process whereby
stress and fatigue are tested
on a computer model before it
goes into production. JE is
the only performance piston
manufacturer to earn the
QS-9000 quality standard
which confirms that JE
provides customers the
highest standards in quality
control. In addition, we also
have State-Of-The-Art
inspection equipment and
testing equipment which
enables us to constantly
bring you, the customer, the
very latest in piston design
configurations.
