MODULAR HI-RAM EFI INTAKE LS3 L92 INCL. FUEL RAILS KIT
MODULAR HI-RAM EFI INTAKE LS3 L92 INCL. FUEL RAILS KIT
$2,475.06
Description

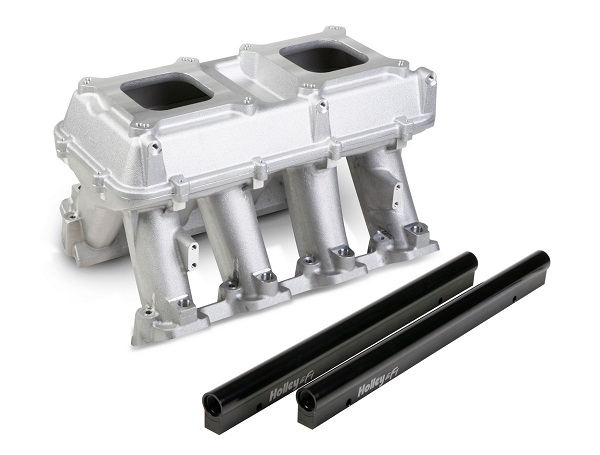

The Holley GM LS3/L92 Modular Hi-Ram Intake Manifoldis introduced as a cost effective alternative to fabricated sheet-metal for high-performance applications where induction system height is not limited. Coupling this Hi-Ram intake with the high flowing LS3/L92 style cylinderheads has outstanding potential for N/A and forced induction applications at a budget-minded cost. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more!
The base is designed to be modular in configuration to accept a widerange of carbureted and EFI tops and to be attractive to builders and fabricators as the foundation for custom induction systems.
Runner lengthand the tapered cross-section designed to perform well for awide range of engine configurations
EFI fuel rails are machined for -8AN O-ring fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsationsin the fuel system and come standard with EFI Hi-Ram kits.
Cast aluminium construction.
Intendedfor use on N/A or forced induction engines in the 6.0 to 7.0+ liter range, max powerat 7000-8000+RPM.
FEATURES:
Height (Carbureted or EFI, 2x4V Top Mount & Blank) – 11.08†tothe lifter valley cover flangeon engine block.
Base Plenum Top Mounting Flange Height – 8.42†to thelifter valley cover flange on engine block.
Port Size – 2.49†Height x1.21†Wide
MountingFlange Gasket Type – Standard LS3 Molded O-Ring
Plenum Top Gasket Type – 3/32†RoundO-ring Cord
Runner Length – 6.50â€Â, As-CastRunner Cross-Sectional Area – Tapered 4.25 in² to 2.77in²
Additional information
| Weight | 13.2200 kg |
|---|---|
| Dimensions | 53.90 × 37.10 × 33.00 cm |
| Category list | |
| Brand | Holley |
