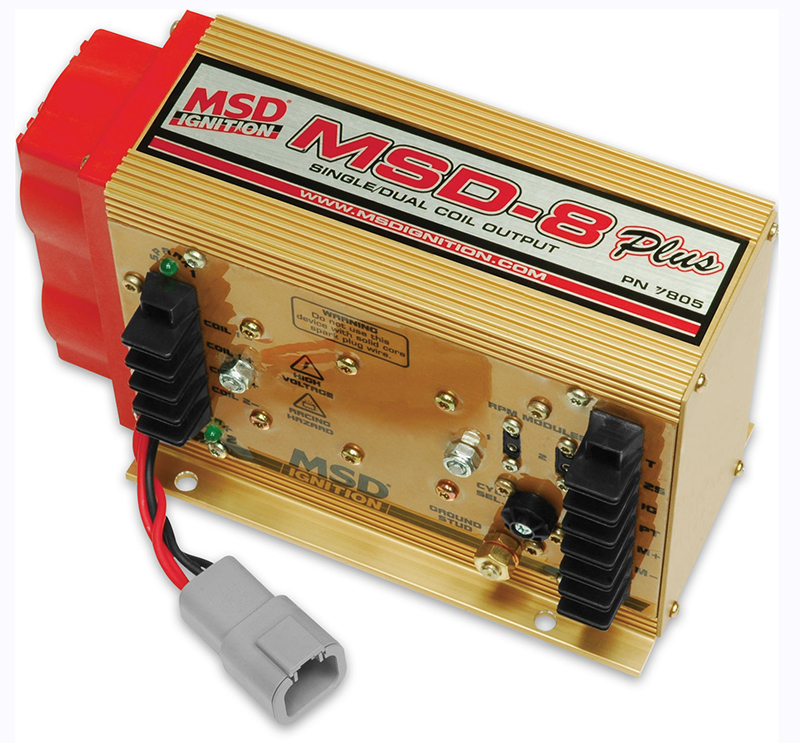

MSD-8 PLUS RACE IGNITION SINGLE/DUAL COIL ALCOHOL/NITRO
MSD-8 PLUS RACE IGNITION SINGLE/DUAL COIL ALCOHOL/NITRO
$3,627.27
Description
Unmatched spark output
Built-in 2-Step Rev Control
Compatible for 4, 6 and 8-cylinders
Works on single or dual coil output systems
The MSD 8-Plus Ignition produces the same extreme output of the original 8-Series, yet is now in a smaller housing with improved efficiency and internal components. One distinct change is now a built-in 2-Step Rev Control. Now you can switch between two rev limits without extra wiring or housings. For those that are looking for a dual fire MSD 8, the new 8-Plus is all you need. Our engineers were able to deliver an ignition that is capable of firing two coils at once for those extreme racers using dual plug race setups.
Operating Specifications
Spark Energy: 315-345 millijoules/Spark
Primary Voltage: 480 Volts
Secondary Voltage: 50,000 Volts
Spark Series Duration: 20° Crankshaft Rotation
R PM Range: h 14.4 Volts
Voltage Required: 12 – 18 Volts, Negative Ground
Current Draw: 36 Amps at 12,000 RPM
Weight and Size: 4.85 lbs., 8.25″L x 3.75″W x 5.75″H
Tested with Pro Power Coil PN MSD8201
Additional information
| Weight | 4.4000 kg |
|---|---|
| Dimensions | 25.90 × 18.80 × 18.80 cm |
| Category list | |
| Brand | Msd |
