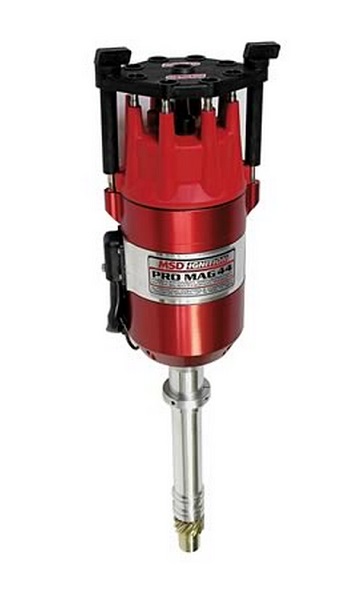

MSD CHEV PRO MAG 44 SLIP COLLAR GENERATOR STD CAP

Description

The Pro Mag 44 is the King
of all magnetos. With no
magnets to recharge, no
points to replace and by
producing an amazing 44 amps
of primary current, it’s no
wonder that the Pro Mag 44 is
the choice of top fuel
dragster and funny car teams!
The 44 utilises a proprietary
assemblage of rare earth
magnets and windings to
produce this incredible
energy. To accurately trigger
all of this energy, a
magnetic pickup is mounted in
the lower base of the
generator and is triggered by
one of eight precision
paddles on a reluctor mounted
to a 0.500″ shaft. This
pickup replaces weak and
inaccurate points and never
requires adjusting. When the
pickup is triggered, the
signal is sent to the
Electronic Points Box where
the spark duration is
controlled then directed to
the 44’s Coil. Over a pound
of copper wire goes into the
special hand-wound windings
deep within the coil where
the voltage is immediately
stepped up and sent to the
here it gets accurately
distributed to the correct
spark plugs creating an
explosion of heat and energy
in the cylinder. Another
advantage to the Pro Mag 44’s
design is that you can
incorporate optional
accessories. A crank trigger
can be adapted to trigger the
mag for the ultimate in
ignition triggering. Also, a
Timing Retard Control or even
a rev limiter can be used for
improved consistency and
safety! The MSD Pro Mag 44 is
hands-down, the most powerful
and accurate magneto
available with the durability
to match the performance. Two
versions of the Pro Mag 44
generator are available, a
clockwise rotation and
counter-clockwise model, in
Band Clamp housings only. A
cross drive is used to drive
the mags and a five inch
diameter cap is supplied
along with a rotor and wire
retainer.

Specifications:

Primary Current: 44 Amps
Spark Energy: 950 millijoules
(at the gap)
Secondary
Voltage: 50,000 Volts
Secondary Current: 1.2 Amps

Spark Series Duration :
n
RPM Rating: through
12,000 RPM
