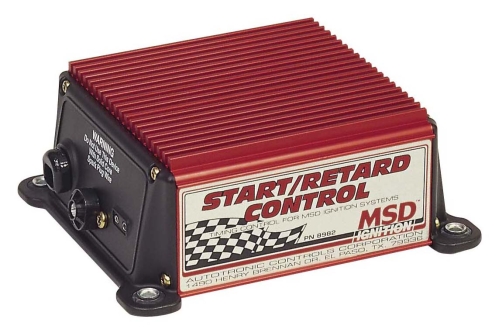

MSD START RETARD CONTROL SUITS 6,7,8,10 SERIES

Description

This timing control is the
direct result of MSD being at
the races and listening to
what racers want. With the
large number of engines
running locked-out timing,
racers wanted a simple way to
retard the timing during
cranking plus have a single
stage of retard available for
high rpm or nitrous. The
Start/Retard Control lets you
choose either 10° or
25° of retard during
cranking only. The timing
will retard only while
cranking and returns to the
set mechanical timing once
the engine starts and you
release the key or until the
engine reaches 1,300 rpm.
Along with the start retard
feature, this Control also
has a single stage of retard.
This retard can be activated
when nitrous is in use to
prevent detonation or at high
rpm to achieve a little more
top end. The amount of retard
is adjustable with plug-in
modules and is activated by a
single wire that can be
connected directly to a
nitrous solenoid or a micro
switch on the shifter. The
Start/Re tard Control is easy
l and program and is supplied
with 2°, 3° and
4° modules. It must be
used with an MSD 6, SCI, 7, 8
or 10 Ignition Control.
