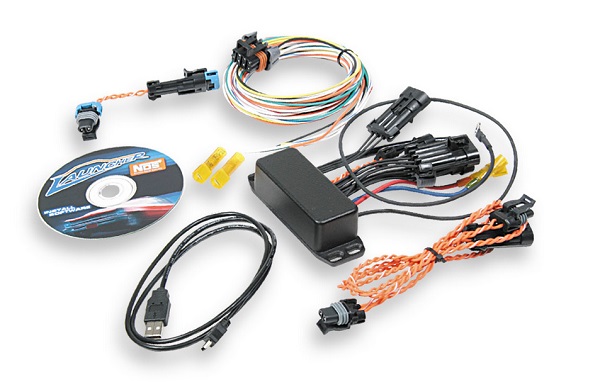

NOS LAUNCHER NITROUS CONTROLLER

Description

Nitrous Oxide Systems is
proud to present the
Launcher. It combines all the
functions a nitrous racer
could ever want into a
single,
easy–to–use
controller. This handy device
can be programmed to
independently control up to 4
stages of nitrous from a
laptop computer or via an
available full color
3.5” LCD
touch–screen. Easy to
use graphical software makes
the Launcher a breeze to
program. The launcher is
available in 3 basic
configurations. It is
available as the launcher
controller only; the Launcher
controller with 3.5”
color LCD touch–screen
(Includes stylus and mini SD
card for data–logging);
or the Launcher controller
with the handheld tuner for
data–logging and quick
changes in the staging lanes.

Features:

• Fully Programmable via laptop
• Compatible with
  Windows 2000, ME, XP, and
  Vista
• NEW innovative
  NOSbus 2-wire network
  interface for seamless
  integration with other
  ted products
• Easy to
  use graphical software
• Free software and
  firmware updates updatable by
  the user, downloadable off
  i-net
• Available with
  a Handheld controller with SD
  card slot and USB interface
  for quick changes in the
  staging lanes and
  data-logging without laptop
  in the vehicle
• Available with a 3.5″
  Color, touch screen LCD for
  the ultimate in programming
  and looks. (No laptop
  Required)
• 3.5″
  Color, touch screen LCD also
  features a SD card slot for
  saving configuration files
  and data-logging as well as a
  USB interface
• Full
  data-logging capability for
  easy reviewing of past runs
  through laptop, handheld
  controller (SD card) or LCD
  touch screen (SD card)
• Ability to save
  configuration files for easy
  set-up at different tracks or
  for weather conditions
• Handheld controller or
  LCD touch screen allows
  changes in the staging lanes
  without laptop
• Fully
  programmable 2 stages of
  nitrous control and with the
  optio nal slave controller
  n add two more stages for a
  total of 4 fully programmable
  stages of nitrous control
• Can be programmed to add
  or take away nitrous at any
  point to compensate for track
  or weather conditions
• ntegrated TPS for use on fuel
  injected or drive by wire
  vehicles without the need of
  a separate WOT switch
• Two programmable activation
  inputs
• Activation of
  nitrous can be provided from
  a power input, ground input,
  or a Falling or Rising TPS
  signal
• Features an
  internal MAP sensor for
  nitrous ramps based on boost
  PSI
• Solenoid control
  channels with a load capacity
  of 40 amps for use with large
  solenoids
• 1st gear
  lockout to prevent the
  nitrous from being triggered
  until the RPM cutoff has been
  hit the first time
• Two 1 amp general purpose
  outputs for timing retards,
  purge, or any activation
  switch (two additional on the
  optional slave controller)
• Use WBO2 controller
  P/N 15979 for rich or lean
  nitrous cut off. Requires
  Holley WBO2 sensors P/N
  h or P/N 534-194 NTK (NTK
  requires a 534-199 extension
  harness)
• Customer has
  the option to enable lean
  and/or rich nitrous cutoff
  with a programmable delay
  time up to 1 second.
  Richest/Leanest AFR data is
  also logged along with the
  nitrous data for advanced
  analysis
• Pause Enable
  Option – when retriggered,
  (pedaling event) the ramp
  will continue where it left
  off (rather than starting
  over from scratch)
• Nitrous pressure sensor input
  for data-logging
