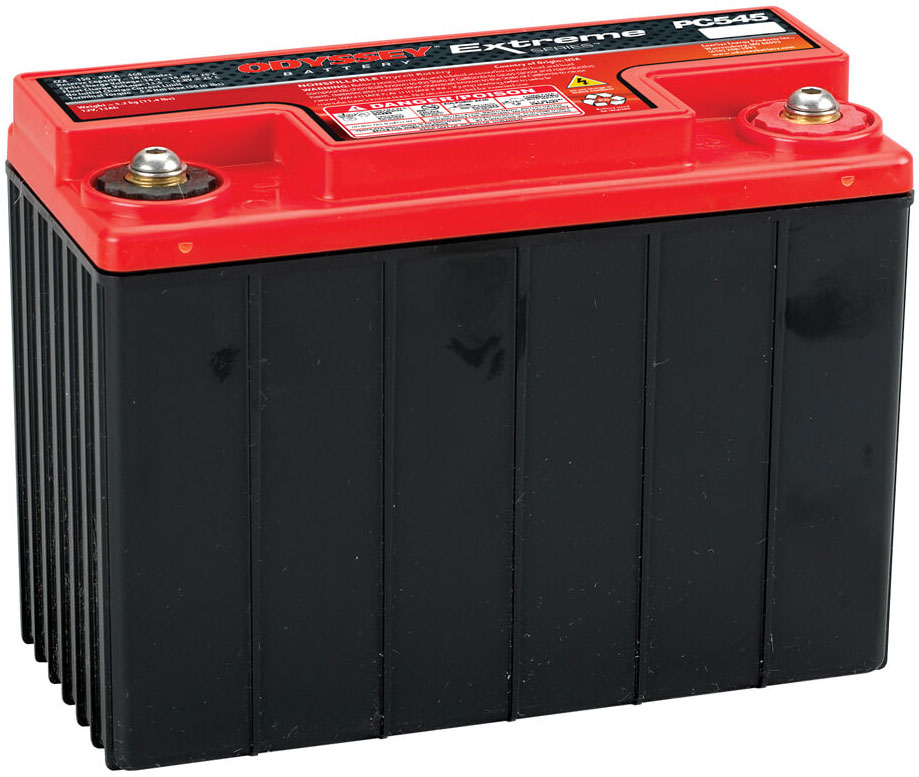

ODYSSEY BATTERY – 150CCA 12AH NO METAL JACKET MOTORCYCLE

Description

Some batteries offer enormous cranking power. Others, deep cycle reserve power. Unbeatable ODYSSEY®Extreme Seriesâ„¢ batteries do both. Even at very low temperatures, ODYSSEYExtreme Series batteries have the power to provide engine – cranking pulses in excess of 2250 amps for 5 seconds – double to triple that of equally sized conventional batteries. And they can handle400 charge – discharge cycles to 80% depth of discharge.
ODYSSEY Extreme Series batteries are made with flat plates made of 99% pure lead -not lead alloy, like many conventional batteries. Pure lead plates can be made thinner, so we can fit more ofthem in the battery. More ODYSSEY battery plates mean more plate surface area. And that means more power – twice as much as conventional batteries.
Like many popular spiral – wound batteries, ODYSSEY Extreme Series batteries employ dry cell Absorbed Glass Mat (AGM) technology to contain acid, allowing the battery to be installed even on its side. But the densely packed flat plates in an ODYSSEY Extreme Series battery avoid the “dead space” betweencylinders in a “six pack” design. The result is 15% more plate surface area- and that translates to more power!
Battery Specifications

Model: PC545
Voltage: 12 Volt
Pulse (5 second) Hot Cranking Amps (PHCA): 460
Cold Cranking Amps (CCA): 150
HCA: 280
MCA: 220
20Hr Nominal Capacity (Ah): 13
10Hr Nominal Capacity (Ah): 12
Reserve CapacityMinutes: 18
Terminal: M6 Receptacle
Torque Spec in-lbs (Nm max): 50 (5.6)
Internal Resistance: 10
Short Circuit: 1200

Dimensions

Length: 175 mm
Width: 84 mm
Height(terminals included): 124 mm
Height (container): 130 mm
Weight: 5.2 kg
