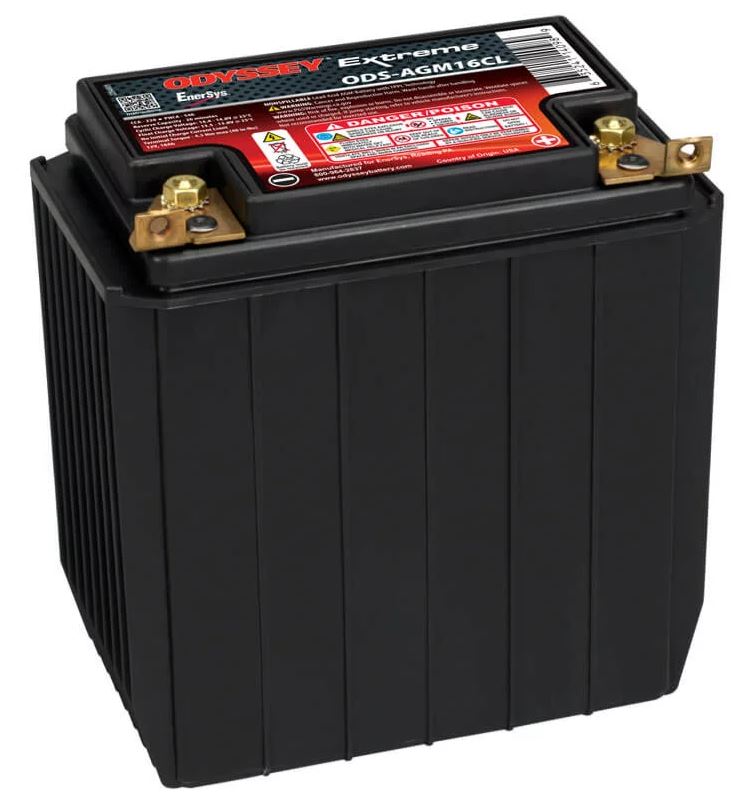

ODYSSEY BATTERY-200CCA 17AH WATERCRAFT NO METAL JACKET

Description

Some batteries offer enormous cranking power. Others, deep cycle reserve power. Unbeatable ODYSSEY®Extreme Seriesâ„¢ batteries do both. Even at very low temperatures, ODYSSEYExtreme Series batteries have the power to provide engine – cranking pulses in excess of 2250 amps for 5 seconds – double to triple that of equally sized conventional batteries. And they can handle400 charge – discharge cycles to 80% depth of discharge.
ODYSSEY Extreme Series batteries are made with flat plates made of 99% pure lead -not lead alloy, like many conventional batteries. Pure lead plates can be made thinner, so we can fit more ofthem in the battery. More ODYSSEY battery plates mean more plate surface area. And that means more power – twice as much as conventional batteries.
Like many popular spiral – wound batteries, ODYSSEY Extreme Series batteries employ dry cell Absorbed Glass Mat (AGM) technology to contain acid, allowing the battery to be installed even on its side. But the densely packed flat plates in an ODYSSEY Extreme Series battery avoid the “dead space” betweencylinders in a “six pack” design. The result is 15% more plate surface area- and that translates to more power!
Battery Specifications

Model: PC625
Voltage: 12 Volt
Pulse (5 second) Hot Cranking Amps (PHCA): 540
Cold Cranking Amps (CCA): 220
HCA: 400
MCA: 330
20Hr Nominal Capacity (Ah): 18
10Hr Nominal Capacity (Ah): 17
Reserve CapacityMinutes: 26
Terminal: M6 Receptacle (brass M6 stud terminals)
Torque Spec in-lbs (Nm max): 40 (4.5)
Internal Resistance: 7
Short Circuit: 1800

Dimensions

Length: 170 mm
Width: 99 mm
Height(terminals included): 178 mm
Height (container): 175 mm
Weight: 6.0 kg
