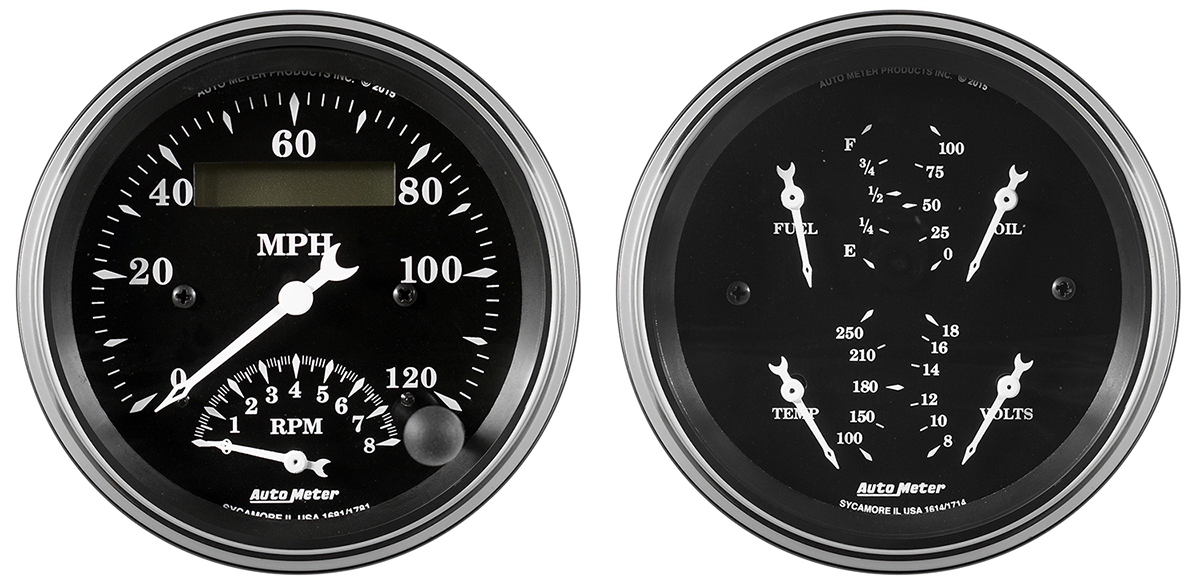

OLD TYME BK 3-3/8″ 2-PIECE KITQUAD GAUGE & TACH / SPEEDO

Description

Save space on your dash
and provide a clean look with
AutoMeter’s Electronic
Tach/Speedo Combo. Taking the
highly precise circuits from
the individual speedometer
and tach and combining them
into one unit gives you the
accuracy and the response
time you need and the
convenience of a one piece
solution. Compatible with
nearly any factory speed
sender and 1-12 cylinder
applications, this unit is
simple to calibrate and
designed with the type of
durability you expect in an
AutoMeter gauge.
AutoMeter’s GPS Speed
Sender is also compatible for
an easy, plug and play
solution.

Sometimes
space is limited. The
AutoMeter Quad Gauge provides
a solution to limited
dashboard space while
providing a clean look.
Individual AutoMeter air core
meter movements for each
function provide the accuracy
and durability required by
even the most demanding
applications. Includes a
single wire 1/8” NPT
temperature sender and a
1/8” NPT oil pressure
sender. The voltmeter reads
from 8-18v on negative ground
electrical systems and fuel
level resistance range is 240
ohms empty to 33 ohms full
(compatible with
AutoMeter’s 3262 fuel
level sender).

Feature Points

• Traditional
  incandescent lighting
  illuminates around the
  perimeter of the dial
• Kit includes fuel level
  sender (240E/33F), oil
  pressure sender, water
  temperature sender, 2-wire
  hall-effect speed sender that
  is compatible with
  GM/Chrysler applications
  (7/8″ – 18THD), sending
  unit adapters (1/4″,
  3/8”, and 1/2″ NPT
  adapters), bulb and socket
  assemblies, red and green
  bulb covers, mounting
  hardware, and detailed
  instructions for
  installation.
• AutoMeter’s race proven
  air-core electric instruments
  provide quick and accurate
  readings while keeping
  hazardous fluids outside of
  the vehicle
• 12 and 16
  volt compatible, compatible
  with nearly every street car
  or race car electrical system
• Speedometer has a
  simple push button, 2 mile
  drive calibration. No dip
  tches and can be reprogramed
  at any time to accommodate
  changes in gear ratio or
  wheel and tire combination.
• Tachometer is
  compatible with 0.5 – 6 pulse
  ignition signals (1-12
  cylinder engines) with
  points, electronic, and most
  12V high-performance racing
  ignitions.
• Speedometer is compatible
  with most two wire sine wave
  and three wire hall effect
  vehicle speed sensors.
• Speedometer features lit
  LCD odometer – capable of
  registering one-million miles
  with two resettable trip
  odometers
• 4 in 1
  gauge design saves valuable
  real estate on your dash
  while allowing you to monitor
  critical parameters
