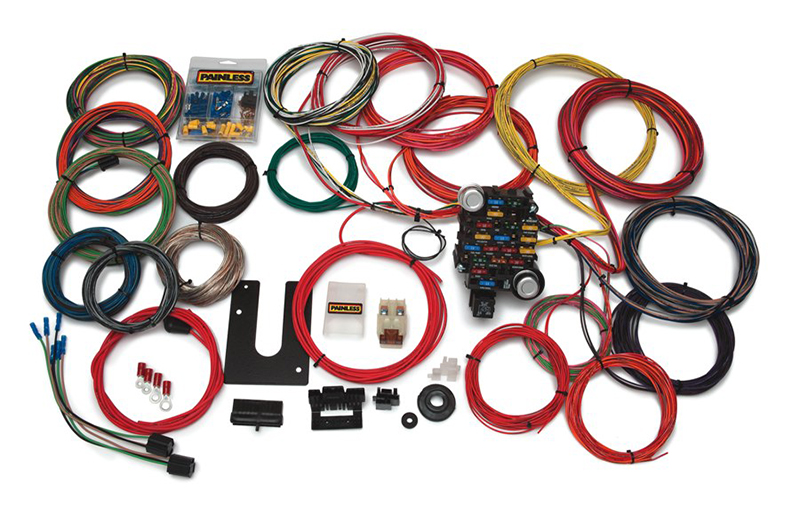

PAINLESS BOOT KIT 28 CIRCUIT WIRING KIT

Description

Our remote boot mount harness provides additional wire from the fuse block to the dash and from the fuse block to the front end, allowing the remote installation of the fuse blockin the boot or behind the rearseat. This 28 Circuit kit allows you to add accessories to the basic wiring such as power windows, door locks, etc. Like all Painless kits this fuse block comes completely pre-wired and terminated for a simple installation. Includes GM column mounted ignition and turn signal switch plugs and terminals.
Number of Circuits:
21 Circuits – 18 Fuses w/ HornRelay & Maxi Fuse
Harness Length:
Extra Long Universal
Fuse Type:
Blade & Maxi Fuse
Firewall Passthrough:
MultipleGrommet
Color Code Based:
Universal
CircuitDesignations:
Printedon Wires
Connectors Included:
GM Column Mounted Ignition and Turn Switches, Dimmer Switch and Two Headlight Pigtails
This harness includes circuits for:
A/C & Heat
Accessory
Accessory / CigaretteLighter
Accessory / Trunk Light
Backup Lights
Brake Lights
Charging
Cruise Control
Dome Light
Electric Choke
Electric Fuel Pump
Emergency Flashers
Fan Relay Activation Power
Fused Power Source
Headlights
Horn (Relay)
Ignition Coil
Instrument Panel Lighting and Gauges*
Park Lights
Power Antenna
Power Door Locks
Power Windows
Radio/Clock (Constant and Switched)*
Starting
Tail Lights
Third Brake Light
Turn Signals
Wipers
* Including Wires For:
Fuel Gauge
Oil Gauge
Speakers
Tachometer
Temperature Gauge
Voltmeter
