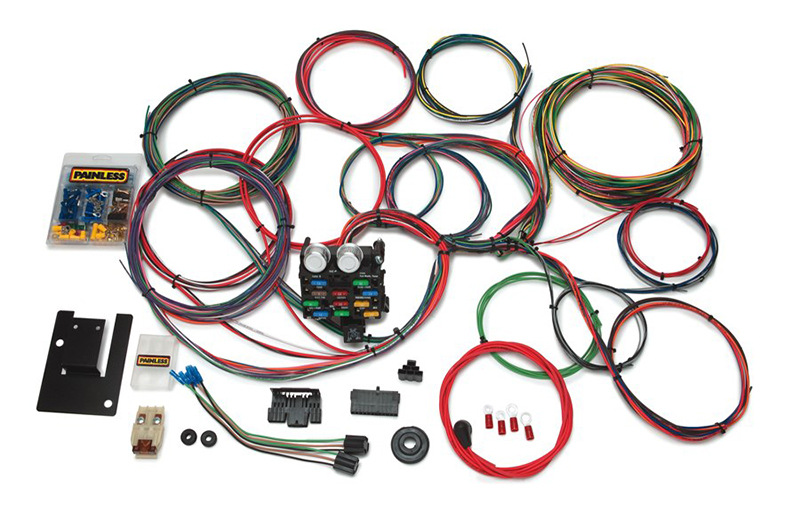

PAINLESS CHEVY 55-7 21 CIRCUITHARNESS

Description

This 21 circuit kit is
designed to fit the 1955-1957
“Tri-Five Chevy”. This harness
features a factory location
Painless mounting plate for
the fuse block, and special
dash & turn signal
connectors. Included with this
harness you will also find pre
wire plugs for the headlights
and each wire is custom
printed with the circuit
identification as well as
using GM color codes for easy
installation.

Number of Circuits:
21 Circuits – 12 Fuses w/ Horn
Relay and Maxi Fuse
Harness
Length: Factory
Fitment
Fuse
Type: Blade &
Maxi Fuse
Firewall
Passthrough:
Grommet
Color
Code Based: Factory
GM
Circuit
Designations: Printed
on Wires

This
harness includes circuits
for:

• A/C
  & Heat
• Accessory /
  Cigarette
  Lighter
• Backup
  Lights
• Brake
  Lights
• Charging
• Dome
  Light
• Electric
  Choke
• Emergency
  Flashers
• Fan Relay
  Activation Power
• Fused Power
  Source
• Headlights
• Horn
  (Relay)
• Ignition
  Coil
• Instrument Panel
  Lighting and
  Gauges*
• Park
  Lights
• Radio/Clock
  (Constant and
  Switched)
• Starting
• Tail Lights
• Third
  Brake Light
• Turn
  Signals
• Wipers

*
Including Wires
For:

• Fuel Gauge
• Oil
  Gauge
• Tachometer
• Temperature
  Gauge
• Voltmeter
