PAINLESS DRAG RACING HARNESS &PANEL KIT 21 CIRCUIT

Description

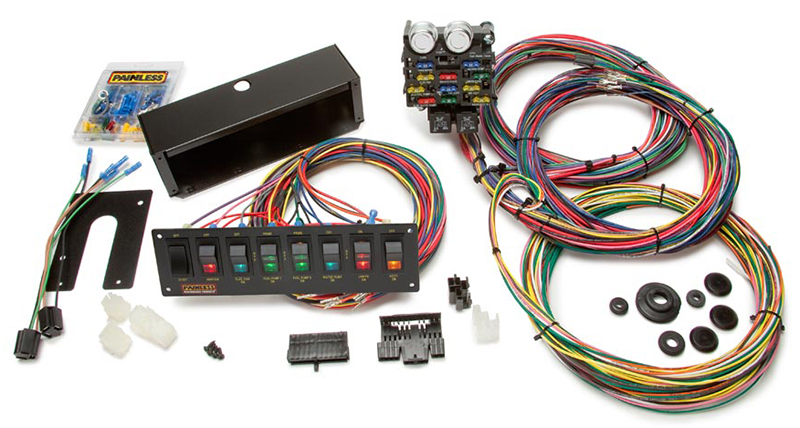

If you are looking for a switch panel and harness to keep your racecar streetable, this 21 circuit harness and switch panel combo is for you.As with all of our chassis harnesses this kit has all thewires labeled and is pre terminated at the fuse block for easy installation. This harness includes an optional connector if you want to use aGM column mounted ignition switch. The included switch panel is a roll bar mount 8 switch rocker panel. This panel is prewired and is a direct plug and play into thisharness. Also Included is a painless mounting plate, grommets, terminal assortment kit, and the necessary connectors for your turn signal switch, headlights, andalternator. Each wire is custom printed with the circuit identification as wellas using GM color codes for easy installation.
The switch panel is prelabed for the following:
Start
Ignition
Electric Fan
Fuel Pump#1
Fuel Pump #2 / Accessory
Water Pump
Lights
Accessory
Number of Circuits:
21 Circuits – 12 Fuses w/ HornRelay
Harness Length:
Universal
Fuse Type:
Blade & Maxi Fuse
Firewall Passthrough:
Grommet
Circuit Designations:
Printedon Wires
This harness includes these circuits:
Accessory #1
Accessory#2
Brake Lights
Charging
Dome Light
Electric Fuel Pump #1
Electric Fuel Pump #2
Electric WaterPump
Emergency Flashers
Fan Relay Activation Power
FusedPower Source
Headlights
Horn
IgnitionCoil
Park Lights
Radio and Gauges
Starting
Tail Lights
Third Brake Light
Turn Signals
Wipers
* Including wires for:
Fuel Gauge
Oil Gauge
Tachometer
Temperature Gauge
