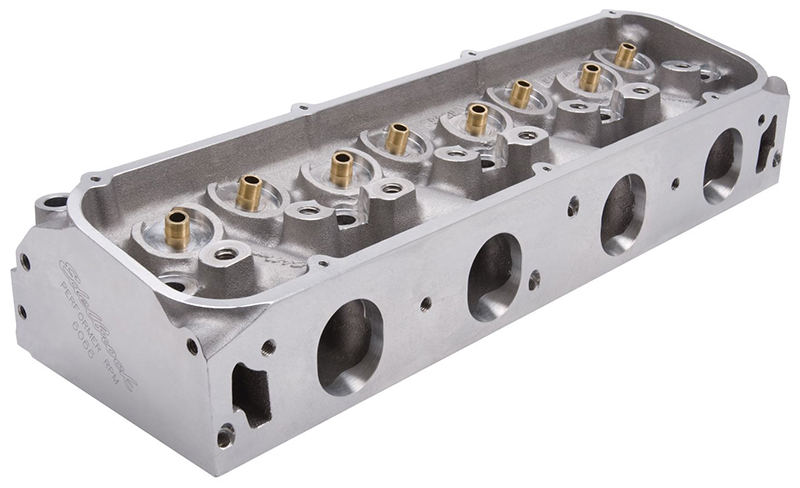

PERFORMER RPM HEAD 429/460 95CC CHAMBER BARE SINGLE

Description

Performer RPM heads are
perfect for street
performance, daily drivers,
street rods and muscle cars
where seat-of-the-pants
performance is needed. These
heads give great torque and
horsepower up to 6500 rpm.

• Designed for 1968-87
  429-460 Fords
• Ideal
  for high-performance street
  and drag racing
• Over
  500+ hp at 6500 rpm (+30 hp
  more than ported factory
  heads) and 525+ ft/lbs. of
  torque at 4500 rpm with the
  Performer RPM Total Power
  Package
• Intake ports
  can be opened up to match
  Victor manifolds # ED2965 and
  # ED2966
• Performer
  RPM 460 heads accept factory
  exhaust, aftermarket headers
  and factory valvetrain
  components.
• Requires
  the use of 3/8″ diameter
  pushrods
• Bare heads
  will have valve guides and
  seats installed, but will
  require final sizing and a
  valve job to match the valves
  you will be using.

Combustion chamber
volume: 95cc
Intake runner volume:
292cc

Exhaust runner volume:
100cc

Intake valve diameter:
2.19″ – Not
included
Exhaust
valve diameter:
1.76″ – Not included
Valve stem diameter:
11/32″

Valve guides:
Manganese bronze

Deck thickness: 5/8″

Valve spring
diameter: 1.55″ –
Not included
Valve
spring maximum lift:
.700″ – Not included
Rocker stud:
– Not included

Guideplate: – Not
included
Pushrod
diameter: 3/8″
Exhaust port
location: Stock
Spark plug fitment:
14mm x 3/4″ reach,
gasket seat
Made
In: USA
