PHANTOM 200 IN-TANK FUEL KIT CARBURETTED, RETURN STYLE
PHANTOM 200 IN-TANK FUEL KIT CARBURETTED, RETURN STYLE
$2,608.79
Description
These new Phantom Carbureted Fuel Systems include all main fuel system components required to create a proper carbureted fuel system, including the desired Phantom Baffled Fuel Pump Kit with a 200 LPH fuel pump. This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications. Each system ships with the proper carbureted bypass fuel pressure regulator, high flow billet fuel filter, filter mounting bracket, plus all the required port fittings and o-rings, the deluxe wiring kit (not shown) and Aeromotive fuel pressure gauge. Ideal for naturally aspirated and blown, carbureted engines producing from 300- 900 plus flywheel Horse Power, on the street or at the track. AN-08 Style fuel hose and hose-ends are required for the installation of a fuel supply and return line, sold separately and not included.

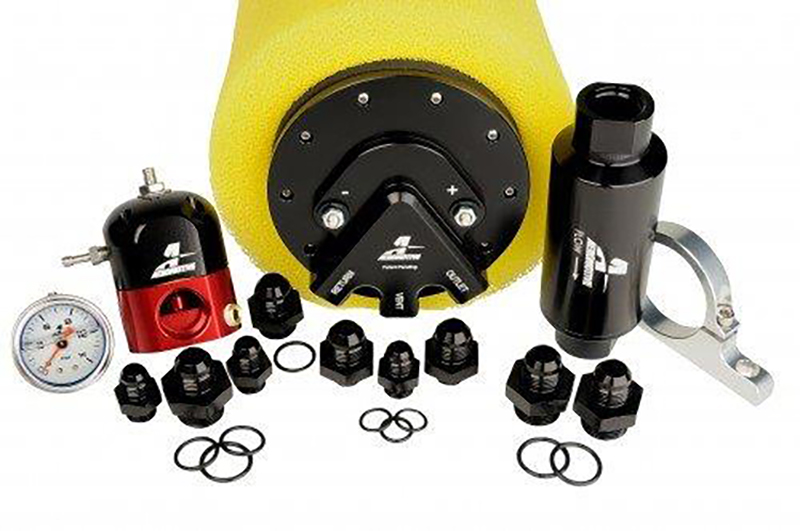

This kit contains the following parts:
1ea p/n 18689 Phantom 200 1ea p/n 12321 Filter 10 micron Paper 1ea p/n 12305 Filter Bracket 1ea p/n 13204 Regulator, ByPass, Carb. 1ea p/n 16307 Fuel Pump Wiring Kit. 3 ea p/n 15606 AN-06 ORB to AN-06 flare 1 ea p/n 15607 AN-08 ORB to AN-08 flare 3 ea p/n 15610 AN-10 ORB to AN-08 flare 1ea p/n 15626 AN-06 Port Plug 2ea p/n 15649 AN-06 ORB to AN-08 flare 1 ea p/n 15632 0-15 PSI Pressure Gauge
Additional information
| Weight | 5.9600 kg |
|---|---|
| Dimensions | 45.70 × 30.50 × 30.50 cm |
| Category list | |
| Brand | Aeromotive |
