PHANTOM 340 IN-TANK FUEL KIT CARBURETTED, RETURN STYLE
PHANTOM 340 IN-TANK FUEL KIT CARBURETTED, RETURN STYLE
$3,037.22
Description
These new Phantom Carbureted Fuel Systems include all main fuel system components required to create a proper carbureted fuel system, including the desired Phantom Baffled Fuel Pump Kit with a 340 LPH fuel pump. Eachsystem ships with the proper carbureted bypass fuel pressure regulator, high flow billet fuel filter, filter mounting bracket, plus all therequired port fittings and o-rings, the deluxe wiring kit(not shown) and Aeromotive fuel pressure gauge.
Ideal for naturally aspirated and blown,carbureted engines producing up to 900 plus flywheel Horse Power, on the street or at thetrack. AN-08 Style fuel hose and hose-ends are required forthe installation of a fuel supply and return line, sold separately and not included.

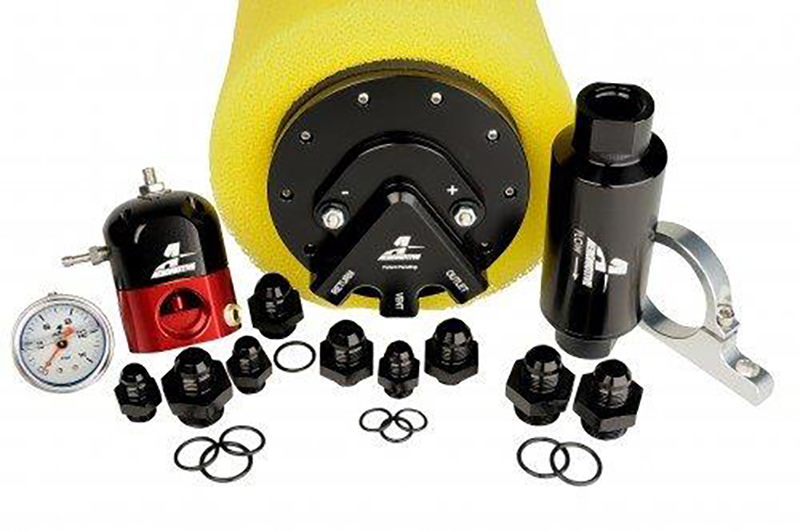

Kit Includes:
1ea p/n 18688 Phantom 340
1ea p/n 12321 Filter 10 micron Paper
1ea p/n 12305 Filter Bracket
1ea p/n13204 Regulator, ByPass, Carb.
1ea p/n 16307 Fuel Pump Wiring Kit.
3 ea p/n 15606 AN-06 ORB to AN-06 flare
1 ea p/n 15607 AN-08 ORB to AN-08 flare
3 ea p/n 15610 AN-10 ORB to AN-08 flare
1ea p/n 15626 AN-06 Port Plug
2ea p/n 15649 AN-06 ORB to AN-08 flare
1 ea p/n 15632 0-15 PSI Pressure Gauge
Additional information
| Weight | 6.0300 kg |
|---|---|
| Dimensions | 45.70 × 30.50 × 30.50 cm |
| Category list | |
| Brand | Aeromotive |
