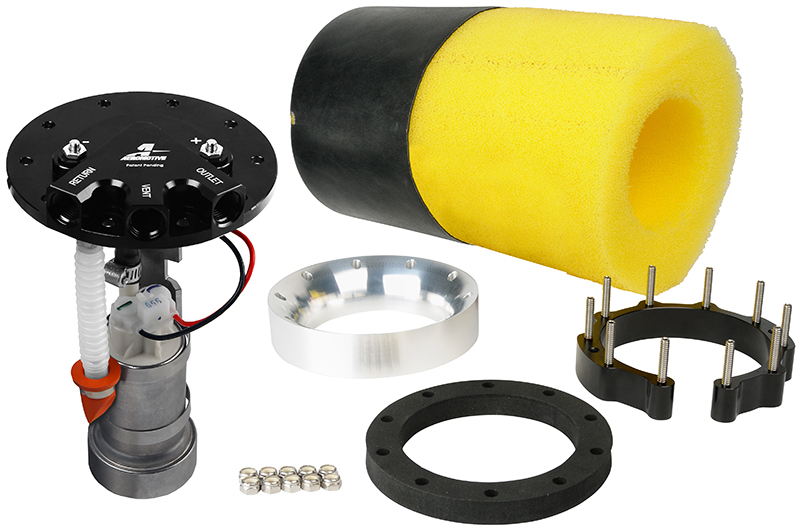

PHANTOM FLEX 450 STEALTH FUEL SYSTEM. 6″-10″ DEPTH UNI E85

Description

Aeromotive’s Phantom lineof universal in-tank fuel systems goes green with the new Phantom Flex. As E85 makesits way into mainstream hot-rodding, its higher octanerating creates a cheaper fuel alternative for higher compression performance applications, but came with a few problems, namely its corrosive nature and stoichiometric ratio (fuel needed per unit of air). This is no match for the sealed electrical connections and 450lph pump included with Phantom Flex, making Aeromotive’s latest additiontrue to its name.
The Phantom Flex has a lot in common with the original Phantom. Whether you’re using E85 or gasoline, the Flex provides easy installation in virtually any fuel tank. It comes with an additional 30% more flow over its 340lph predecessor. The system also includes a larger foam and bladder design to feed the 450lph pump and combat fuel slosh in many harsh driving conditions. Reliable and quiet, the new Phantom Flex provides you witha viable solution when using renewable energy.
Features:
450 lph Stealth Fuel Pump
E85 Compatible
Supports upto (on Gas) – 800HP EFI – Forced Induction – 1,100HP EFI- Naturally Aspirated – 950HP Carbureted – Forced Induction – 1300HP Carbureted – Naturally Aspirated
Supports up to (on E85) – 550HP EFI – Forced Induction – 750HP EFI -Naturally Aspirated – 700HP Carbureted – Forced Induction – 900HP Carbureted – NaturallyAspirated
Black anodized top hat
(3) ORB-06 Ports – Supply, Return, Vent
Larger Capacity fuel resistant baffle/ basket (Includes: Foam and Bladder)
Universal high flow pre-pump filter
Modular design can be cut to height to fit almost any fuel tank
EFI or Carburetted
Turbine pump mechanism increases durability.
In-tank use only
