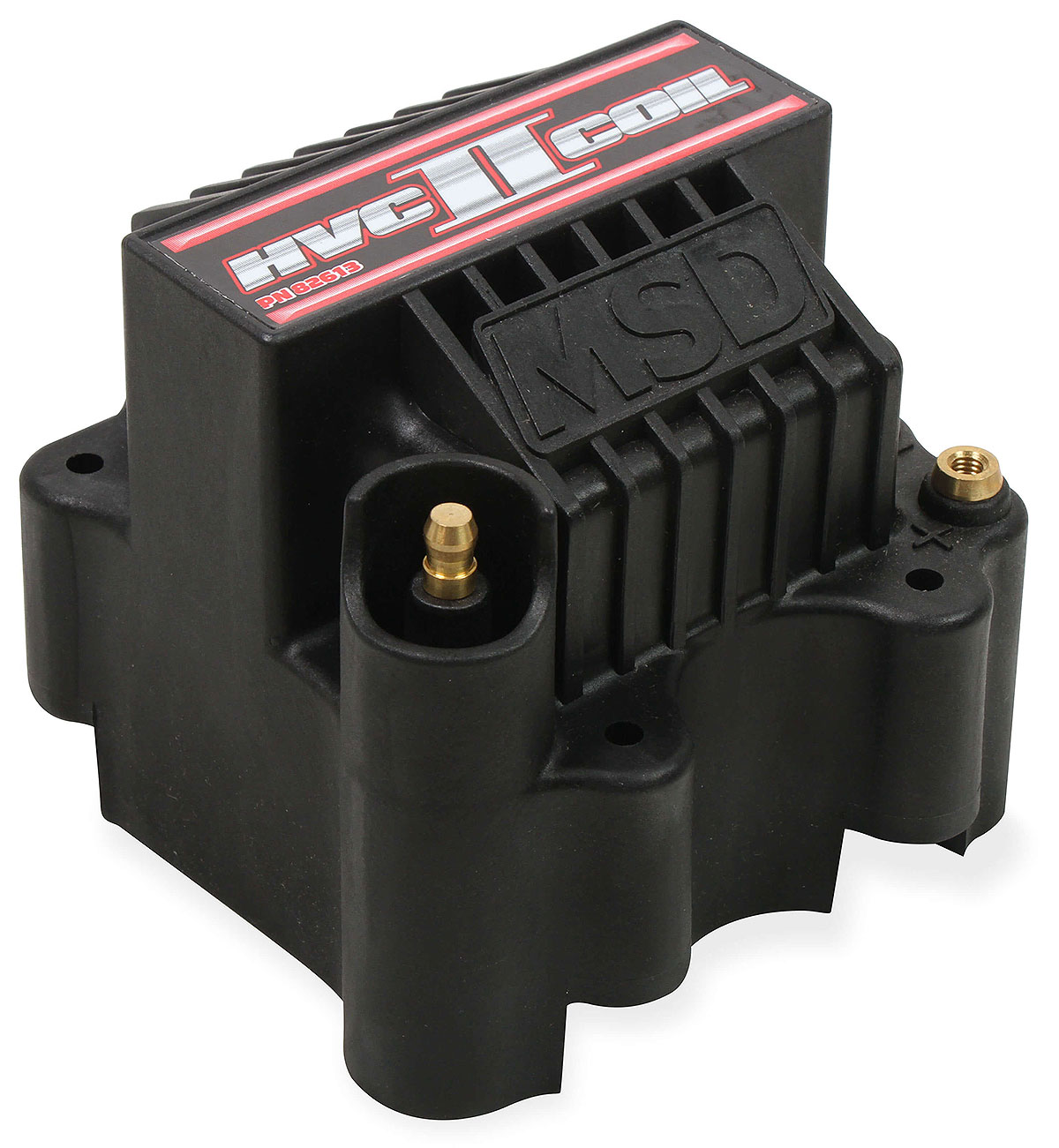

PRO POWER HVC 2 COIL SUITS MSD7 SERIES, BLACK
PRO POWER HVC 2 COIL SUITS MSD7 SERIES, BLACK
$710.02
Description
Designed for racing applications with an MSD 7 Series Ignition Control
New U-core winding design produces more voltage and current
70:1 turns ratio and lower primary resistance produce high voltage output
Windings are encased in fracture resistant compound for vibration resistance
Dupont Rynite housing with isolated tower and brass primary terminals
Supplied with rubber shock mounts
The Pro Power HVC II Coil is completely built in-house so our engineers have exclusive control over their performance and quality. The Coil utilises an iron U-Core design with a segmented bobbin for improved voltage distribution. The bobbin is moulded from Dupont Rynite FR946 material which has incredible dielectric capabilities at high temperatures. MSD also incorporated a cutting edge winding material that has an improved insulation and is also capable of endur ing ether, these materials create a durable coil with incredible voltage capabilities, lightning quick rise time and lengthy spark duration. The housing, also moulded from Rynite material, features far spaced brass primary terminals and a well protected secondary tower for increased spark isolation. The housing is completely potted with an epoxy compound for vibration resistance and installs with sturdy vibration mounts. For use with MSD 7 and 8 Series Ignitions.
Additional information
| Weight | 2.1500 kg |
|---|---|
| Dimensions | 15.50 × 14.00 × 14.00 cm |
| Category list | |
| Brand | Msd |
