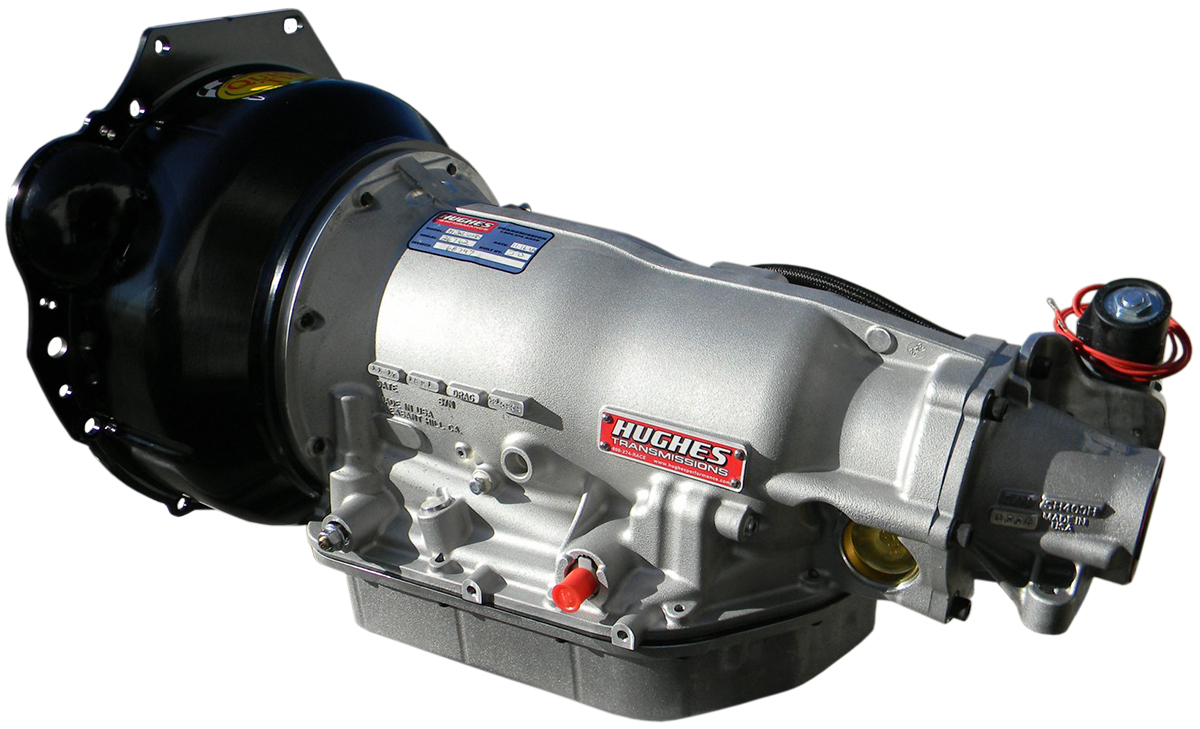

PRO SERIES TH400 TRANS W/ REIDCASE REV PAT BARRA BELL 2000HP

Description

Features

• Pro
  Series TH400 transmission
  assembly
• Rated for use
  with up to 2,000 flywheel
  horsepower
• QuickTime
  Performance SFI-certified Ford
  Barra bellhousing
• Reid
  Racing or ATI SFI-certified
  transmission case
• Reid
  Racing or ATI heavy duty
  4-inch extension housing with
  roller bearing
• Extreme
  Duty Pro Tree billet aluminium
  transbrake valve body,
  3-speed, reverse shift pattern
  (P-R-N-1-2-3)
• 300M
  billet steel solid input
  shaft
• H-11 billet
  steel intermediate
  shaft
• 4140 forged
  steel nitride-treated forward
  clutch hub
• Hard
  anodized billet aluminium
  direct drum
• Pro Mod 36
  element intermediate sprag and
  heat treated
  races
• Billet aluminium
  adjustable pressure
  regulator
• Heat treated
  steel pump stator
  tube
• Raybestos Gen 2
  blue friction
  plates
• Raybestos
  Kolene steel plates
  Proprietary Pro Mod rear band
  Thrust washers replaced with
  Torrington bearings throughout
  transmission where applicable
  Deep cast aluminium
  transmission pan with magnetic
  drain plug
• 2.48:1 1st
  gear, 1.48:1 second gear,
  1.00:1 third gear
