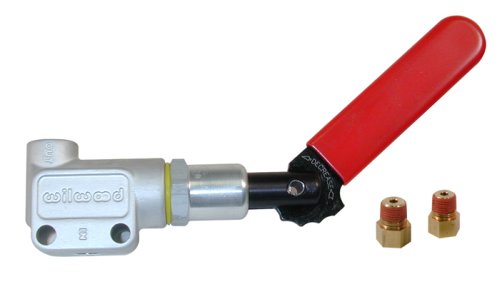

PROPORTIONING VALVE COMPACT LEVER STYLE
PROPORTIONING VALVE COMPACT LEVER STYLE
$221.80
Description
The new generation of adjustable proportioning valves combines the latest refinements to deliver precise pressure metering and strength from a compact forged billet design. Pressure adjustments range from 100-1000 PSI and provide for a maximum decrease of 57% in line pressure, the most of any available valve. This proportioning valve has six pre-set points actuated by moving a lever allowing racers to quickly adjust brake bias during a race. The lever “clicks” into the six positions for positive adjustment. Valves weigh only 6.1 ounces (lever), and have two .25″ side mounting holes spaced 1.00″ apart. Inlet / outlet ports are 1/8-27 NPT.
Additional information
| Weight | 0.3240 kg |
|---|---|
| Dimensions | 19.40 × 2.90 × 14.00 cm |
| Category list | |
| Brand | Wilwood |
